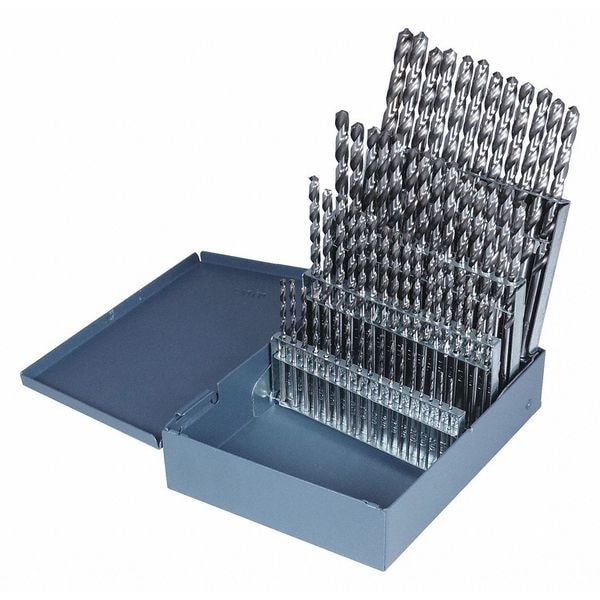

60PC CLE-MAX Jobber Length Drill Set Cleveland 2002G Bright HSS RHS/RHC No 1-No 60
Mfr # C00934
Zoro # G0960482
product price:
$
161.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C00934
- Zoro #
- G0960482
- UPC #
- 697334009344
- Country of Origin
- United States
Dimensions
- Depth x Dia. Ratio
- 4xD
- Drill Bit Size
- #60 to #1
- Depth:Dia. Ratio
- 4xD
- Drill Bit Dimension Type
- Wire
- Shank Dia.
- #60 to #1
- Sizes Included
- #1,#2,#3,#4,#5,#6,#7,#8,#9,#10,#11,#12,#13,#14,#15,#16,#17,#18,#19,#20",#21,#22,#23,#24,#25,#26,#27,#28,#29,#30,#31,#32,#33,#34,#35,#36,#37,#88,#39,#40",#41,#42,#43,#44,#45,#46,#47,#48,#49,#50,#51,#52,#53,#54,#55,#56,#57,#58,#59,#60
- Size Range
- #1-#60
- Drill Bit Sizes Included
- #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
- Smallest Drill Bit Size
- #60
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- #1
- Overall Length
- 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
- Wire Rope Length
- 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
- Length
- 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Description
The CLEVELAND - C00934 is a jobber-length drill bit set consisting of 60 high speed steel bits intended for drilling applications using high speed steel (HSS) bits. The set covers a size range from #60 up to #1, with right-hand spiral flutes and straight shanks. These drill bits include a 118-degree conventional point angle and radial point type, and are intended for drilling aluminum, cast iron, and steel (as listed in the ISO code references K, N, P). The bits are manufactured in accordance with ASME B94.11M-1993 and DIN 338, and include a metal drill index for organized storage.
Key Features:
- Quantity: 60 drill bits with sizes incrementally ranging from #60 to #1 wire gauge.
- Material: High speed steel, general purpose grade for machining.
- Drill length class: Jobber length with overall lengths from 1 5/8 in to 3 7/8 in.
- Flute type: Two-flute spiral with right-hand cutting direction and helix angles between 21° and 34°.
- Point type: Conventional radial point with a 118° included angle.
- Shank type: Straight shank matching corresponding drill size diameters.
- Measurement system: Wire gauge sizes included for precise diameter specification.
- Packaging: Comes with a metal index case for bit organization and storage.
- Intended for drilling aluminum, cast iron, and steel using ISO code references (K, N, P).
