  11. Spiral Point Tap, Plug, 4

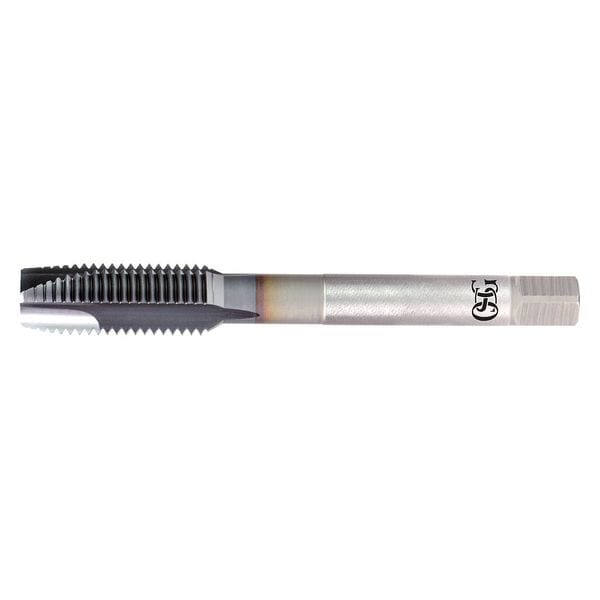

Osg Spiral Point Tap, Plug, 4 1651002408 - main

Spiral Point Tap, Plug, 4

  • Mfr # 1651002408

  • Zoro # G7456967

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Tap Style
Spiral Point
Tap Size
M20
Tap Dimension Type
Metric
Tap Material
Powdered Metal
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1651002408
Zoro #
G7456967
UPC #
-
Country of Origin
Japan

Dimensions

Tap Size
M20
Tap Dimension Type
Metric
Overall Length
125.00mm
Thread Length
44.00mm
Tap Thread Size
M20-1.5
Shank Dia.
16.30mm
Shank Length
81.00 mm
65% Thread Drill Size
18.75 mm
Tap Length Standard
DIN
75% Thread Drill Size
18.75 mm
55% Thread Drill Size
18.90 mm
Drill Bit Size
18.44 mm, 18.54 mm, 18.64 mm, 18.73 mm, 18.83 mm
Square Size
12.42 mm
Thread Size
M20x1.5
Size
M20
Pitch Diameter Limit
D6

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Material
Powdered Metal
Tap Chamfer
Plug
Number of Flutes
4
Thread Direction
Right Hand
Tap Thread Type
Metric Fine
Standards
ANSI, DIN
Tap Grouping
Tap
Tap Finish
TiCN
Series
16510
Cutting Direction - Machining
Right Hand
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Shank Type - Machining
Straight
Primary Material Application ISO Code
H, M, P
Coolant Fed
Non-Coolant Through
Thread Limit
D6
Measurement System
Metric
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Spiral Direction
Neutral
Secondary Material Application ISO Code
K, N, P
Extended Neck
Yes
Thread Standard
Metric Fine
Tap Shank Standard
ANSI
Thread Pitch
1.50 mm
Helix Angle
0 Degrees
Number of Pieces
1
List Number
16510

Description

Spiral Point Tap, Thread Size M20x1.5, Metric, Overall Length 125 mm, Powdered Metal, V, Right Hand, Thread Length 30 mm, 75 Percent Thread Drill Size 18.75 mm, Thread Limit D6, Class of Fit 4H-6H, Number of Flutes 4
