Shop OSG

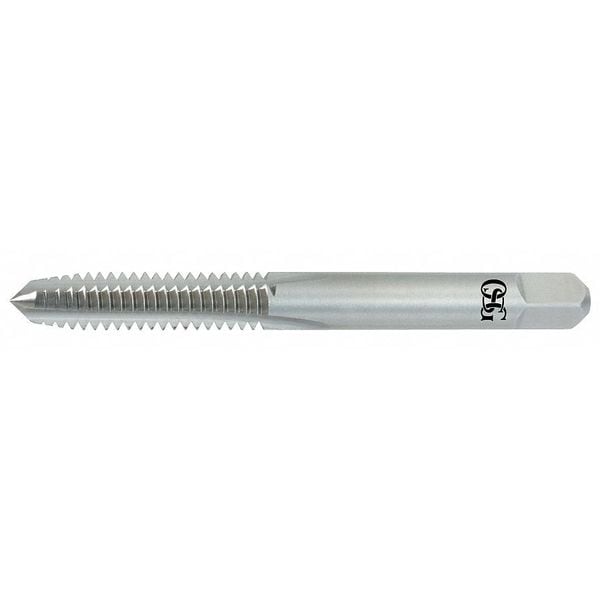

Straight Flute Hand Tap, Plug, 3

  • Mfr # 1160100

  • Zoro # G2770671

product price:  $10.65
/ea

Key Features

Shank Dia.
0.255"
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
1/4"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1160100
Zoro #
G2770671
UPC #
-
Country of Origin
Brazil

Dimensions

Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Overall Length
2-1/2"
Pitch Diameter Limit
H1
Tap Thread Size
1/4"-20
Thread Length
1"
Tap Length Standard
ANSI
Shank Length
1 5/16 in
Thread Size
1/4"-20
Square Size
0.1910 in
75% Thread Drill Size
#7
65% Thread Drill Size
#5
55% Thread Drill Size
#3
Size
1/4"
Square Length
0.31 in
Neck Length
1.18 in
Shank Diameter
0.255 in
Square Width
0.19 in

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
List Number
103
Tap Finish
Bright (Uncoated)
Tap Grouping
Tap
Thread Direction
Right Hand
Number of Pieces
1
Tap Thread Type
UNC
Standards
ANSI
Cutting Direction - Machining
Right Hand
Series
103
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Cast Iron, Steel
Spiral Direction
Neutral
Extended Neck
Yes
Shank Type - Machining
Straight
Threads per Inch
20
Thread Limit
H1
Primary Material Application ISO Code
K, N, P
Thread Standard
UNC
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Class of Fit
2B-3B
Shank Type
Square

Description

Straight Flute Tap, Thread Size 1/4 In.-20, UNC, Plug, Overall Length 2.5 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 0.75 in, 75 Percent Thread Drill Size #7, Thread Limit H1, Class of Fit 2B-3B
