Shop OSG

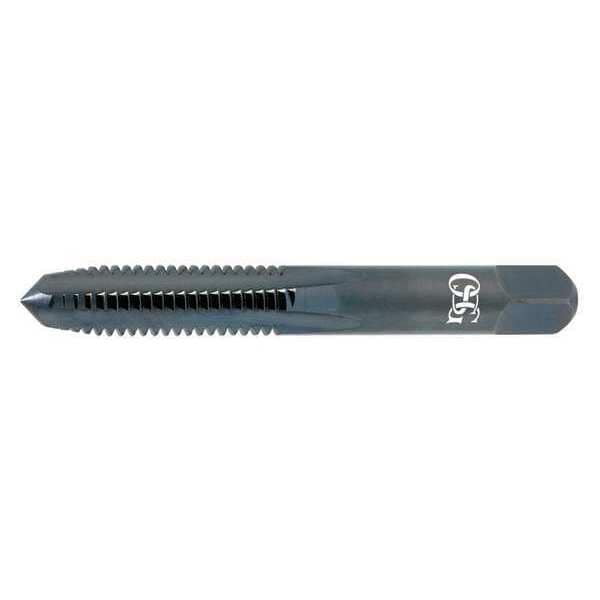

Tap, 1"-8, Plug, 4 Flutes, UNC

  • Mfr # 1136105

  • Zoro # G0606197

product price:  $116.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
0.255"
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Size
1"
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1136105
Zoro #
G0606197
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.255"
Tap Size
1"
Tap Dimension Type
Inch
Overall Length
5.130"
Thread Length
2-1/2"
Pitch Diameter Limit
H4
Tap Thread Size
1"-8
Thread Size
1"-8
55% Thread Drill Size
29/32 in
75% Thread Drill Size
22.25 mm
Square Size
0.6000 in
Tap Length Standard
ANSI
65% Thread Drill Size
57/64 in
Shank Length
2 3/8 in
Neck Length
2.72 in
Shank Diameter
0.8 in
Square Length
0.81 in
Square Width
0.6 in

Details

Item
Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Number of Pieces
1
Tap Finish
TiN
Tap Thread Type
UNC
List Number
101
Cutting Direction - Machining
Right Hand
Series
101
Primary Material Application
Aluminum, Cast Iron, Steel
Measurement System
Fractional Inch
Shank Type - Machining
Straight
Primary Material Application ISO Code
K, N, P
Coolant Fed
Non-Coolant Through
Thread Limit
H4
Extended Neck
Yes
Threads per Inch
8
Spiral Direction
Neutral
Thread Standard
UNC
Helix Angle
0 Degrees
Standards
ANSI
Shank Type
Square
Tap Application
Blind Hole, Through Hole
Class of Fit
2B-3B

Description

Straight Flute Tap, Thread Size 1 In.-8, UNC, Plug, Overall Length 5.12 in, High Speed Steel, TiN, Right Hand, Thread Length 1.87 in, 75 Percent Thread Drill Size 22.25 mm, Thread Limit H4, Class of Fit 2B-3B
