This item is Discontinued.

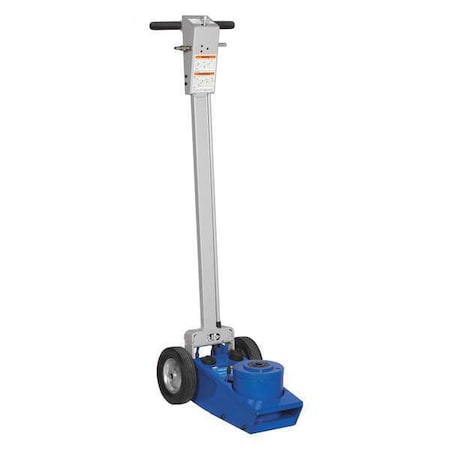

Otc Hydraulic Under Axle Jack, 27-1/2 tons 5292

Hydraulic Under Axle Jack, 27-1/2 tons (Discontinued)

  • Mfr # 5292
  • Zoro # G3962808
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5292
Zoro #
G3962808
UPC #
731413577369
Country of Origin
United States

Dimensions

Lifting Height Max.
21 3/8 in
Lifting Height Min.
8 1/4 in
Caster Wheel Dia.
4 in
Handle Length
48 3/4 in
Base Length
22 in
Chassis Length
22 in
Base Width
12 in
Chassis Height
8 9/32 in
Maximum Lift Height
21 3/8 in
Wheel Diameter
7 7/8 in
Extended Height
69 87/100 in
Minimum Lift Height
8 1/4 in
Overall Width
12 in
Chassis Width
12 in

Details

Item
Hydraulic Under Axle Jack
Lifting Capacity
27 1/2 ton
Includes
(2) Height Adapters
Number of Casters
2
Standards
ANSI-PALD
Power Raise
21 3/8 in
Operation Type
Manual
Material
Steel
Handle Material
Steel
Application
Heavy-Duty
Features
4-Position Handle Makes it Easy to Position Under Vehicles with Low Overhangs, Chrome Plated Ram for Additional Rust Resistance, Dependable Venturi Vacuum Power Return System Feature Lowers Piston Ram Quickly with No Load, Large Rear Wheels Provide Positioning and Portability, Welded Hydraulic Pump and Cylinder Construction Provides Increased Strength and Leak Prevention, Wide Rugged Base Adds Stability and Strength, Wiper Seals Protect Hydraulic System From Contaminants
Duty Rating
Extra-Heavy Duty
Body Material
Steel
Minimum Lift
8 1/4 in
Power Source
Mechanical
Load Capacity
27.5 ton
Handle Type
T-Handle
Minimum Operating Pressure
90 psi
Number of Wheels
2
Jack Type
Under Axle Jack
Maximum Lift
21 3/8 in
Stroke
4 15/16 in
Maximum Operating Pressure
175 psi
For Lifting
Heavy Duty Vehicles

Description

Hydraulic Under Axle Jack, Jack Type Under Axle Jack, Load Capacity 27.5 ton, Body Material Steel, Minimum Lift Height 8 1/4 in, Maximum Lift Height 21 3/8 in, Power Source Mechanical, For Lifting Heavy Duty Vehicles, Chassis Height 8 9/32 in, Chassis Length 22 in, Chassis Width 12 in, Extended Height 69 87/100 in
