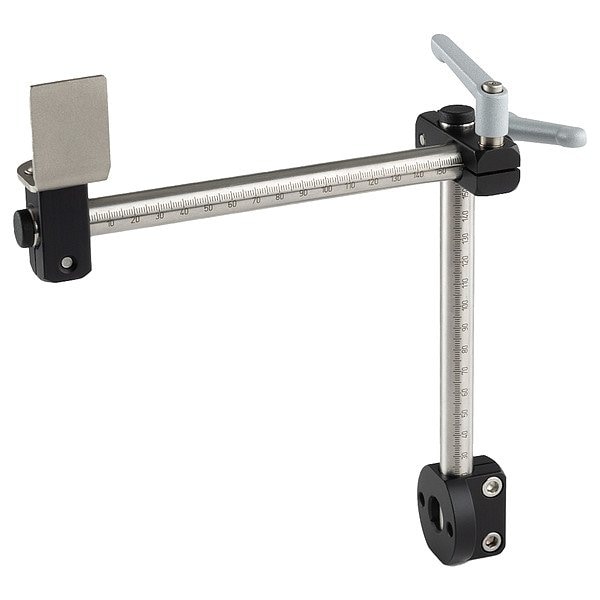

Sensor Mount Kit with Handles, SS Tube
Mfr # MT15-2W-90-LV-S200-S200-BRKT-PL
Zoro # G310081505
product price: $478.99
/ea
Free Shipping & Returns
Key Features
Includes
(2) 200 mm Rod with Scale, Bracket Clamp, Clamping Lever, Mounting Base, Sensor Bracket Without Hole, Tube Caps, Two-Way Connector
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Application
Sensors
Tube Material
Stainless Steel
Handle Material
Zinc
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MT15-2W-90-LV-S200-S200-BRKT-PL
Zoro #
G310081505
UPC #
-
Country of Origin
Germany
Dimensions
Tube 2 Overall Length
200 mm
Tube Outside Diameter
15 mm
Bracket Thickness
2.5 mm
Tube 1 Overall Length
200 mm
Bracket Base Length
35.5 mm
Lever Length
45 mm
Details
Item
Sensor Mount Kit with Handles
Includes
(2) 200 mm Rod with Scale, Bracket Clamp, Clamping Lever, Mounting Base, Sensor Bracket Without Hole, Tube Caps, Two-Way Connector
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Application
Sensors
Tube Material
Stainless Steel
Handle Material
Zinc
Compatible Tube Part Number
MT15-ROD-100-SS, MT15-ROD-200-SS, MT15-ROD-300-SS, MT15-SROD-100-SS, MT15-SROD-200-SS, MT15-SROD-300-SS
Tube 2 Scale
With Scale
Includes Clamping Lever
Clamping Lever Included
Compatible Base Part Number
MT15/15-CB2W-AN
Tube Core Type
Hollow
Tube Shape
Round
Tube 1 Scale
With Scale
Mount Kit Type
Sensor Mount Kit
Base Type
Two-Way Base
Includes Mounting Bracket
Mounting Bracket Included
Compatible Lever Part Number
MT15:16:20-ALK-M6-25
System Type
90 Degree
Description
Sensor Mount Kit with Handles, Application Sensors, Base Type Two-Way Base, Bracket Base Length 35.5 mm, Bracket Mounting Hole Diameter Not Applicable, Bracket Mounting Screw Size Not Applicable, Bracket Thickness 2.5 mm, Compatible Base Part Number MT15/15-CB2W-AN, Compatible Lever Part Number MT15:16:20-ALK-M6-25, Compatible Tube Part Number MT15-ROD-100-SS, MT15-ROD-200-SS, MT15-ROD-300-SS, MT15-SROD-100-SS, MT15-SROD-200-SS, MT15-SROD-300-SS, Handle Material Zinc
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
