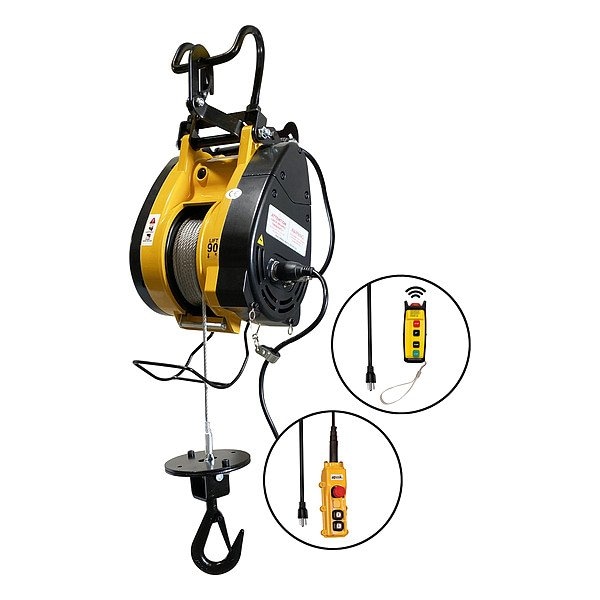

Electric Wire Rope Hoist, 37 fpm, Yellow
Mfr # OBHW1000
Zoro # G716152274
product price:Â
$
2,198.99
/ea
Free Shipping & Returns
Key Features
Lifting Hook Opening Width
1 1/2 in
Standards
CE, FCC
Thermal Protection
Not Available and Not Included
Duty Classification
H3
Mount Type
Hook Mounted - No Trolley
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- OBHW1000
- Zoro #
- G716152274
- UPC #
- -
- Country of Origin
- Multiple
- Item
- Electric Wire Rope Hoist
- Standards
- CE, FCC
- Thermal Protection
- Not Available and Not Included
- Duty Classification
- H3
- Mount Type
- Hook Mounted - No Trolley
- Included Components
- Safety Latch Hook
- Brake Type
- Mechanical
- Current at Min. Voltage
- 15.5 A
- Number of Speeds
- 1
- Includes Brake
- Brake Included
- Controls
- Handheld
- Lifting Hook Type
- Hook with Safety Latch
- Features
- Automatic Shut-Off when Rope Reaches Limit Arm, Lightweight and Compact Design for Convenient Mounting, Quick-Release Pendant and Power Cords, Sensor Arm for Motor Shut-Off to Prevent Reverse Winding, Upper and Lower Limit Switches for Additional Safety
- Fixed Lift Speed
- 37 fpm
- Cord Type
- Wire
- Programmable
- Non-Programmable
- Overload Protection Included
- No
- Color
- Yellow
- Headroom
- 28 1/2 in
- Phase
- 1
- Motor Horsepower
- 2 3/8 hp
- Maximum Lifting Capacity
- 1,000 lb
- Current at Max. Voltage
- 15.5 A
Description
Electric Wire Rope Hoist, Current at Maximum Voltage 15.5 A, Current at Minimum Voltage 15.5 A, Duty Classification H3, Headroom 28 1/2 in, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 37 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Maximum Lifting Capacity 1,000 lb, Maximum Lifting Length 90 ft, Motor Horsepower 2 3/8 hp, Mount Type Hook Mounted - No Trolley, Operating Voltage 115V AC, Body Depth 12 in, Body Length 28 1/2 in
