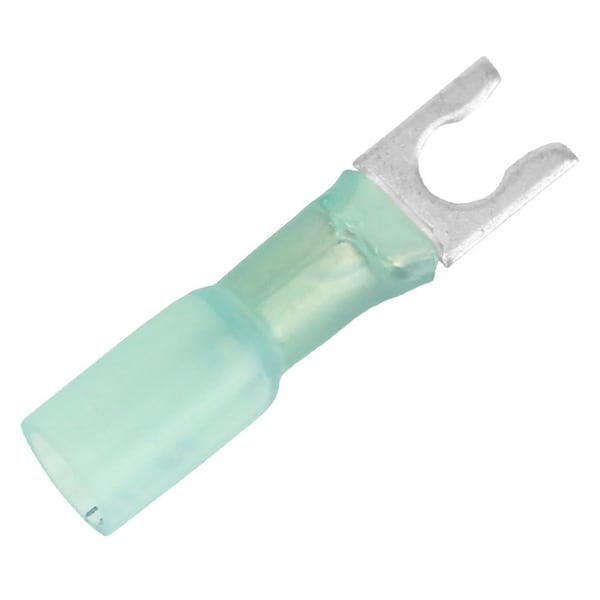

Pacer 16-14 AWG Heat Shrink Spade Terminal - No 8 Stud Size - 100 Pack
Mfr # TE14-8SLF-100
Zoro # G911891985
product price:Â $52.15
/eaKey Features
Terminal Shape
Locking Fork
Insulation Color
Blue
Minimum Operating Temperature
-55 Degrees C
Insulation Coverage
Partial Coverage
Insulation Type
Heat Shrink
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
TE14-8SLF-100
Zoro #
G911891985
UPC #
840248206549
Country of Origin
United States
Dimensions
Minimum Wire Size
16 AWG
Stud Size
#8
Maximum Wire Size
14 AWG
Details
Item
Fork Terminal
Terminal Shape
Locking Fork
Insulation Color
Blue
Minimum Operating Temperature
-55 Degrees C
Insulation Coverage
Partial Coverage
Insulation Type
Heat Shrink
Maximum Operating Temperature
125 Degrees C
Contact Material
Copper
Maximum Voltage
600 V
Description
16-14 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 Pack Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens. Features:High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits:Environmentally sealed Easy to Install Built for durability Long-lasting Specifications:Color: Blue Wire AWG: 16-14 AWG Stud Size: #8 Terminal Pad Width inch: 0.32in Package Size: One-hundred included
