Shop PACKARD

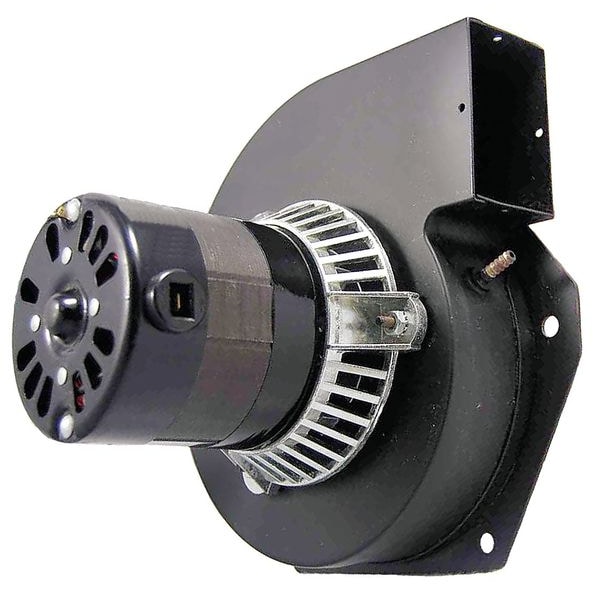

Draft Inducer, 208/230, Metal, 7 3/32 in W, 6 29/64 in H, 4.88/2.75x1.75" Inlet and Outlet Dia.

  • Mfr # 82148

  • Zoro # G9135682

product price:  $182.99
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
4.88/2.75x1.75"
Type
Replacement
Voltage
208/230
Depth (In.)
7 19/32 in
HP
1/50 hp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
82148
Zoro #
G9135682
UPC #
-
Country of Origin
China

Dimensions

Inlet and Outlet Dia. (In.)
4.88/2.75x1.75"
Depth (In.)
7 19/32 in
Height (In.)
6 29/64 in
Vent Pipe Dia. (In.)
3.3"
Width (In.)
7 3/32 in
Inlet Diameter
4 7/8 in
Overall Height
6 3/8 in
Overall Depth
7 in
Overall Width
7 in
Outlet Width
1 3/4 in
Outlet Height
2 3/4 in

Details

Item
Draft Inducer
Type
Replacement
Voltage
208/230
HP
1/50 hp
Construction Material
Metal
Amps
0.16A
Includes
Capacitor
For Use With Mfr. Model Number
1054268P
Fits Brand
ICP
Replaces
Packard 82148, Fasco 7021-10284, Fasco 7021-7617, Fasco 7021-9237, Fasco A148, Universal 9446, Franklin 8211765065, ICP 1054268, ICP 1054268P, ICP 4MH37, ICP 7021-10284, ICP 7021-7617, ICP 7021-9237, ICP 8211765065, ICP HQ1054268FA
Agency Compliance
CSA, UL
Application
Furnaces
Watts
11W
Number of Speeds
1
RPM
3000
Bearings
Ball
Enclosure
Open
Frame
3.3
Class
B
Overload Protection
Automatic
Motor Type
Permanent Split Capacitor
Maximum Motor Horsepower
1/30 hp
Frequency
50/60 Hz
For Use With
1054268P, ICP
Standards
CSA Certified, UL Listed
Current
0.16 A
Maximum Motor Speed
3,000 RPM
Motor Insulation Class
B
For Fuel Type
Natural Gas
Phase
1
Outlet Shape
Rectangular
Maximum Static Pressure
1/8 in wc
Housing Material
Steel
Maximum Inlet Air Temperature
40 Degrees C
Nameplate Voltage
208-230V AC
Includes Motor
Yes
Replacement For Manufacturer Model Number
1054268, 1054268P, 4MH37, 7021-10284, 7021-7617, 7021-9237, 8211765065, 82148, 9446, A148, HQ1054268FA
Compatible with Brand
Fasco, Franklin, ICP, Packard, Universal
Includes Mounting Hardware
Yes
Blower Type
Induced Draft Blower

Description

Draft Inducer, Application Furnaces, For Fuel Type Natural Gas, Inlet Diameter 4 7/8 in, Outlet Diameter Not Applicable, Compatible with Brand Fasco, Franklin, ICP, Packard, Universal, Replacement For Manufacturer Model Number 1054268, 1054268P, 4MH37, 7021-10284, 7021-7617, 7021-9237, 8211765065, 82148, 9446, A148, HQ1054268FA, Nameplate Voltage 208-230V AC, Phase 1, Current 0.16 A, Frequency 50/60 Hz, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Motor Speed 3,000 RPM

Restrictions

This item has been restricted from sale in the following states: NJ
