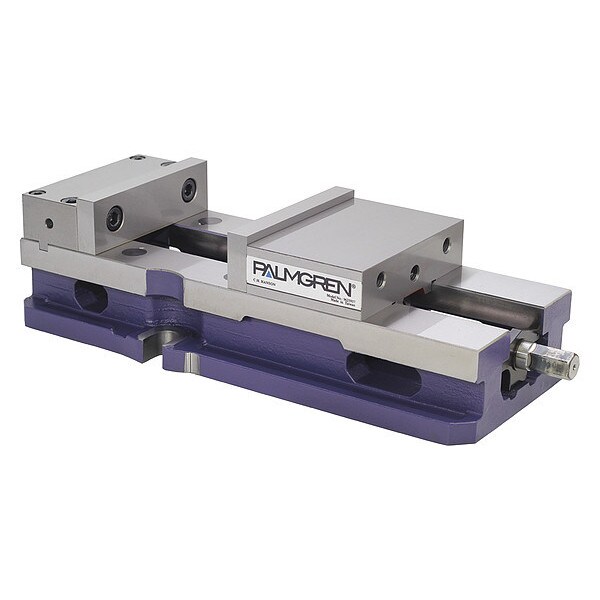

Machine Vise, 18-1/4" L, 4-19/32" H
- Mfr # 9625937
- Zoro # G2757671
product price:Â
$
1,021.99
/ea
Free Shipping & Returns
Key Features
Type
Dual Force
Features
Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates, Hardened Vise Bed, Repeatability within 0.001 in, Stress Relieved Ductile Iron Castings 80,000 psi, Vise Nut does not Extend beyond the end of the Vise Body
Jaw Opening (In.)
9 in
Jaw Width (In.)
6 in
Overall Height (In.)
4-19/32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9625937
- Zoro #
- G2757671
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Machine Vise
- Type
- Dual Force
- Features
- Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates, Hardened Vise Bed, Repeatability within 0.001 in, Stress Relieved Ductile Iron Castings 80,000 psi, Vise Nut does not Extend beyond the end of the Vise Body
- Jaw Opening (In.)
- 9 in
- Jaw Deflection
- 0.001 in At 4000 lb
- Clamping Force (Lb.)
- 80,000
- Max. Travel
- 9.00
- Bed/Base
- 0.0004 in
- Jaw Plate
- Hardened Ground Steel
- Base
- Stationary
- Base Type
- Fixed
- Compatible Machinery
- CNC Milling Machine
- Jaw Opening - Maximum
- 9 in
- Machine Vise Type
- Precision
- Base Material
- Steel
- Jaw Face Type
- Smooth
- Jaw Deflection - Maximum
- 0.001 in
- Lead Screw Type
- ACME
- Bed/Base Parallel Tolerance - Maximum
- 0.0004 in
- Jaw Material
- Steel
Description
Machine Vise, Dual Force, Stationary Base, Jaw Width (In.) 6 in, Jaw Opening (In.) 9 in, Throat Depth (In.) 1 47/64 in, Overall Length (In.) 18-1/4, Overall Height (In.) 4-19/32, Max. Travel 9.00, Clamping Force (Lb.) 80,000, Jaw Deflection 0.001 in At 4000 lb, Jaw Plate Hardened Ground Steel, Bed/Base 0.0004 in
