  11. Mill/Drill, 14 In, 3/4HP, 110V, 115-2600 Sp

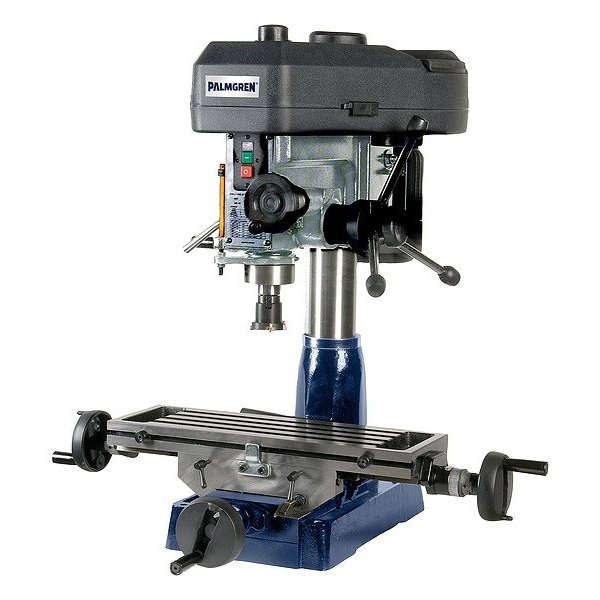

Palmgren Mill/Drill, 14 In, 3/4HP, 110V, 115-2600 Sp 2LKP8 - main

Mill/Drill, 14 In, 3/4HP, 110V, 115-2600 Sp

  • Mfr # 2LKP8

  • Zoro # G1545512

product price: $3,419.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

Swing
16 in
Voltage
120/240V
RPM
115 to 2580
Drilling Capacity Steel
1 in
Spindle Speed
115 to 2580 rpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2LKP8
Zoro #
G1545512
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia.
2 1/2 in
Column Dia.
3-5/8 in
Overall Height
40 in
Overall Width
33 in
Overall Depth
27 in
T-Slot Width
1/2 in
Quill Diameter
2 1/2 in
Table Work Surface - Width
23 in
Table Work Surface - Depth
7 3/8 in
Column Diameter
3 5/8 in

Details

Swing
16 in
Voltage
120/240V
RPM
115 to 2580
Item
Mill Drill
Drilling Capacity Steel
1 in
Spindle Speed
115 to 2580 rpm
Face Milling Capacity
2 1/2 in
Motor HP
3/4
Phase
Single
Longitudinal Travel
14 1/2 in
Cross Travel
5 1/2 in
Amps
12.0/6.0
End Milling Capacity
1/2 in
Spindle Taper
R8
Milling and Drilling Machine Product Grouping
Mill/Drill Machines
Operation
Manual
Table Work Surface
7-3/8 in x 23 in
Spindle Travel
3-3/4"
Spindle
R8
Spindle to Table
14"
Features
Cast Iron Construction, Depth Gauge, Fine Feed Handwheel with 0.001 in Graduations with Quill Lock, Precision Ground Work Table, Taper Roller Spindle Bearings
Corded/Cordless
Corded
Corded/Banded
Corded
Hz
60
Includes
(6) 1/8 in to 3/4 in x 8ths R8 Collet Set, 1/2 in Chuck, 2 1/2 in Face Mill Cutter with Arbors, R8/MT3 Arbor Adapter, Way Covers, Work Light
T-Slots
1/2"
Number of T-Slots
4
Graduations
0.001 in
Power Source
Corded
Speed
1725 rpm
Frequency
60 Hz
Motor Horsepower
3/4
Milling Head Drive
Belt Drive
Maximum Cross Travel
5 1/2 in
Spindle Speed - Minimum
115 RPM
Includes Chuck
Chuck Included
Included Powerfeeds
No Powerfeed
Spindle Speed - Maximum
2,580 RPM
Number of Spindle Speeds
12
Includes Lights
Light Included
Head Material
Cast Iron
Horsepower
3/4 hp
Includes Digital Readout
No Digital Readout
Includes Power Downfeed
Power Downfeed Not Included
Spindle to Table Distance
14 in
Swing Measurement
16 in
Speed Control
Fixed
Maximum Spindle Travel
3 3/4 in
Motor Speed - Maximum
1,725 RPM
Maximum Longitudinal Travel
14 1/2 in

Description

Mill Drill, Phase Single, Swing 16 in
