  9. Vise, Dual Force, Slotted, 5-63/64 in. W
This item is Discontinued.

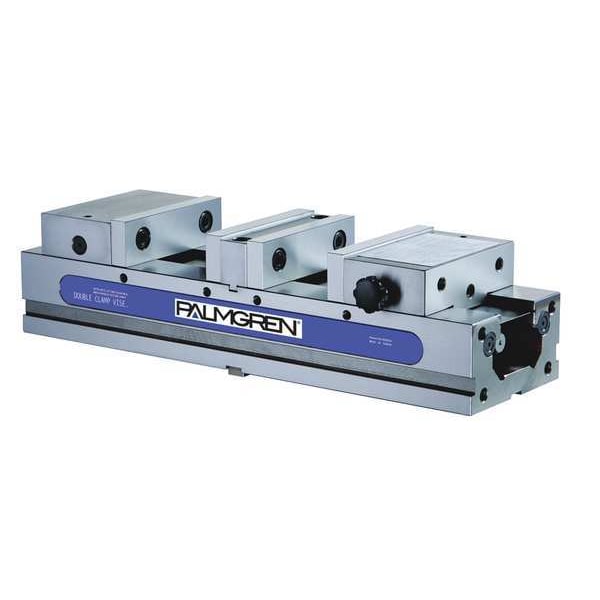

Palmgren Vise, Dual Force, Slotted, 5-63/64 in. W 9625936

Vise, Dual Force, Slotted, 5-63/64 in. W (Discontinued)

  • Mfr # 9625936
  • Zoro # G9487055
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9625936
Zoro #
G9487055
UPC #
726896259369
Country of Origin
Taiwan, Province of China

Dimensions

Jaw Width (In.)
5 63/64 in
Overall Height (In.)
5
Overall Length (In.)
21-7/64
Throat Depth (In.)
1 3/4 in
Jaw Width
6 in
Overall Height
8 in
Overall Length
21 in
Throat Depth
1 3/4 in
Overall Width
9.5 in

Details

Item
Machine Vise
Type
Dual Force
Features
80,000 psi Ductile Ron Castings, can be Mounted Horizontally or Vertically, Can Clamp Two of the Same Size Parts of Different Size Parts, Clamping Force Equalization, Different Work Piece Clamping Applications, Dual Force Anti-Lift Mechanism at Both Ends of the Vise, Height Tolerance is within 0.001, Lifetime Guarantee, One Handle Operates the Two Moveable Jaws, Precision Ground on all Sides
Jaw Opening (In.)
12 7/16 in
Base
Slotted
Jaw Plate
Smooth
Max. Travel
12-7/16
Bed/Base
Ground
Jaw Deflection
0.002 in
Clamping Force (Lb.)
7960
Jaw Deflection - Maximum
0.002 in
Jaw Material
Steel
Clamping Force - Maximum
7,960 lbf
Jaw Opening - Maximum
12 7/16 in
Bed/Base Parallel Tolerance - Maximum
0.0008 in
Base Material
Steel

Description

Machine Vise, Dual Force, Slotted Base, Jaw Width (In.) 5 63/64 in, Jaw Opening (In.) 12 7/16 in, Throat Depth (In.) 1 3/4 in, Overall Length (In.) 21-7/64, Overall Height (In.) 5, Max. Travel 12-7/16, Clamping Force (Lb.) 7960, Jaw Deflection 0.002 in, Jaw Plate Smooth, Bed/Base Ground
