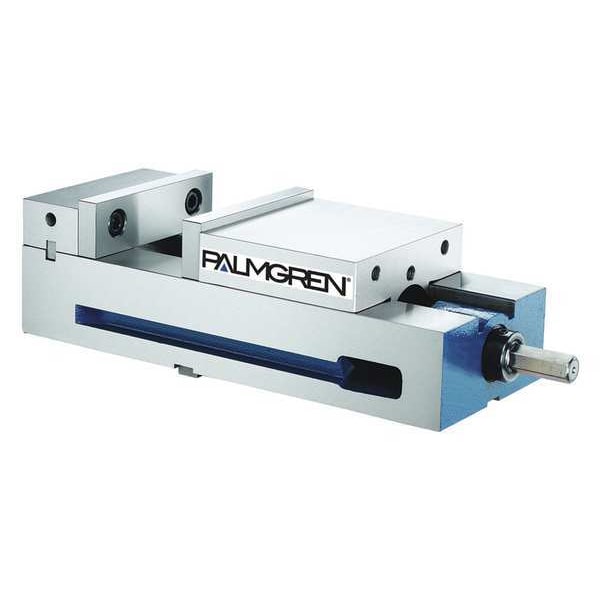

Vise, Slotted, 5-15/16 in. W, 7960 lb.
Mfr # 9626610
Zoro # G9486985
product price:Â
$
1,222.99
/ea
Free Shipping & Returns
Key Features
Type
Dual Force
Features
80,000 psi Ductile Iron Castings, Both Sides are Precision Ground Square to the Bottom of the Vise within 0.004 in, Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates and Hardened Vise Bed
Jaw Opening (In.)
5 53/64 in
Jaw Width (In.)
5 15/16 in
Overall Height (In.)
4-5/8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9626610
- Zoro #
- G9486985
- UPC #
- 726896266107
- Country of Origin
- Taiwan, Province of China
- Item
- Machine Vise
- Type
- Dual Force
- Features
- 80,000 psi Ductile Iron Castings, Both Sides are Precision Ground Square to the Bottom of the Vise within 0.004 in, Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates and Hardened Vise Bed
- Jaw Opening (In.)
- 5 53/64 in
- Jaw Deflection
- 0.003 in
- Max. Travel
- 5-53/64
- Clamping Force (Lb.)
- 7960
- Jaw Plate
- Smooth
- Base
- Slotted
- Bed/Base
- Ground
- Base Type
- Fixed
- Compatible Machinery
- CNC Milling Machine
- Bed/Base Parallel Tolerance - Maximum
- 0.0008 in
- Lead Screw Type
- ACME
- Jaw Deflection - Maximum
- 0.003 in
- Machine Vise Type
- Precision
- Jaw Opening - Maximum
- 6 in
- Clamping Force - Maximum
- 7,960 lbf
- Jaw Face Type
- Smooth
Description
Machine Vise, Dual Force, Slotted Base, Jaw Width (In.) 5 15/16 in, Jaw Opening (In.) 5 53/64 in, Throat Depth (In.) 1 3/4 in, Overall Length (In.) 17-29/32, Overall Height (In.) 4-5/8, Max. Travel 5-53/64, Clamping Force (Lb.) 7960, Jaw Deflection 0.003 in, Jaw Plate Smooth, Bed/Base Ground, 80,000 psi Ductile Iron Castings, Both Sides are Precision Ground Square to the Bottom of the Vise within 0.004 in, Palmgren's Anti-Lift Mechanism, Hardened Jaw Plates and Hardened Vise Bed
