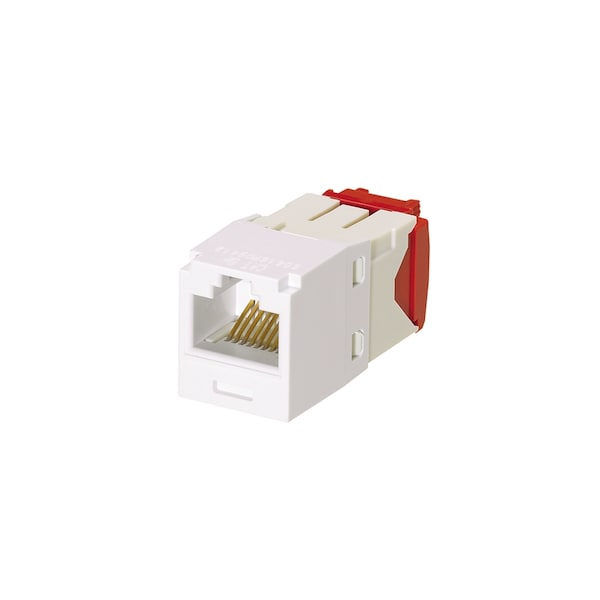

Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM CJ5E88TGWH - main

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT5E IP1 MINI-COM

  • Mfr # CJ5E88TGWH

  • Zoro # G0525656

product price: $13.59
/ea

Key Features

Color
White
Number of Ports
1
Connector Type
Jack Module - Standard
Minimum Storage Temperature (°C)
-40
Minimum Operating Temperature (°C)
-10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TGWH
Zoro #
G0525656
UPC #
74983395385
Country of Origin
Unknown

Dimensions

Overall Depth (In.)
1.5
Overall Width (In.)
0.62
Overall Height (In.)
0.71
Overall Length (In.)
1.5

Details

Color
White
Number of Ports
1
Connector Type
Jack Module - Standard
Minimum Storage Temperature (°C)
-40
Minimum Operating Temperature (°C)
-10
Shield Type
Unshielded (UTP)
Module Type
Mini-Com®
Resistance Properties
Heat-Resistant
Body Material
Polycarbonate
Maximum Operating Temperature (°C)
75
Wiring Scheme
T568A/T568B
Performance Level
Category 5e
Termination Style
TG Style
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Contact Material
Plated Phosphor Bronze
Maximum Storage Temperature (°C)
75
Product Type
Network Connector
Additional Information
Gold-Plated Contacts
Connector Details
1 x RJ-45 Network Female
Product Color
White
Product Name
Mini-Com TX-5e Modular Insert
Certifications & Standards
EIA/TIA-568
Contact Plating
Gold
Product Line
Mini-Com
Family
PAN-PUNCH
Termination
Idc
Sub Family
MINI-COM TX-5E JACK
Wiring
A/B Universal
