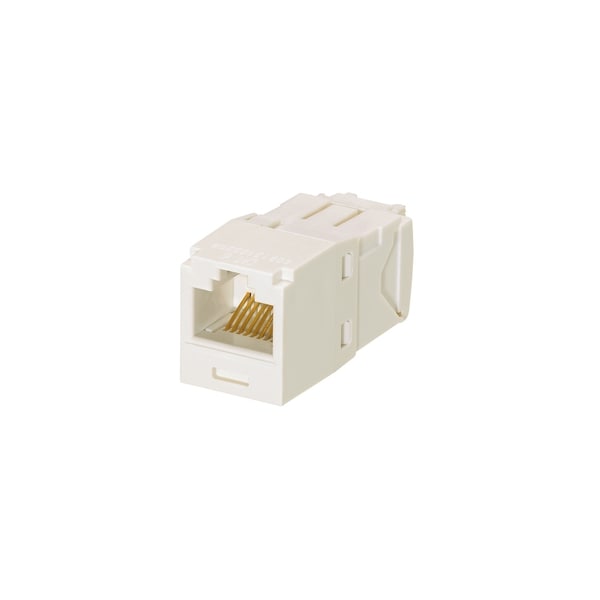

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM

Name: 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM
Brand: Panduit
SKU: G0527652
Price: 19.55 USD
Availability: InStock

19.55

/ea

Color

Off White

Number of Ports

Connector Type

Jack Module - Standard

Product Type

Network Connector

Overall Depth (In.)

1.5

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Color: Off White
Number of Ports: 1
Connector Type: Jack Module - Standard
Product Type: Network Connector
Contact Material: Plated Phosphor Bronze
Standards Met: Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Minimum Operating Temperature (°C): -10
Shield Type: Unshielded (UTP)
Maximum Storage Temperature (°C): 75
Minimum Storage Temperature (°C): -40
Resistance Properties: Heat-Resistant
Body Material: Polycarbonate
Module Type: Mini-Com®
Maximum Operating Temperature (°C): 75
Performance Level: Category 6
Termination Style: TG Style
Wiring Scheme: T568A/T568B
Product Line: Mini-Com
Certifications & Standards: T568A/T568B, ANSI/TIA/EIA-568-C.2, ISO 11801, IEEE 802.3at
Product Name: Mini-Com Cat.6 UTP Module
Connector Details: 1 x RJ-45 Network Female
Family: GIGA-CHANNEL
Sub Family: MINI-COM TX-6 JACK
Termination: Idc
Wiring: A/B Universal
