  9. 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM
Panduit 1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM CJ688TGOR - main

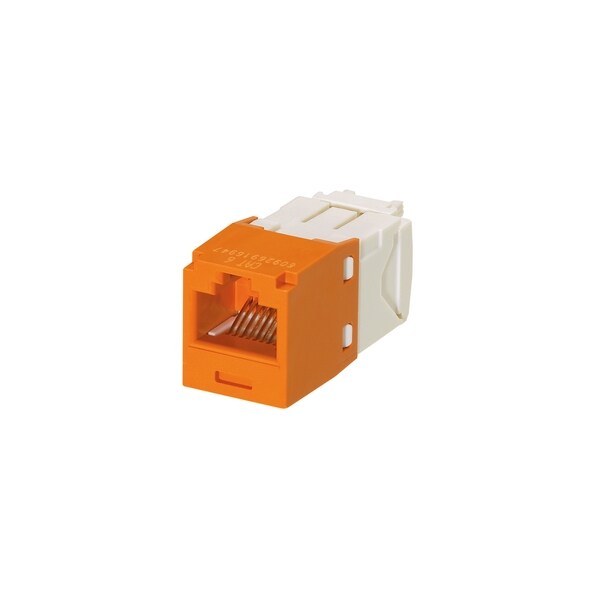

1-PORT MOD JACK IDC 8W8P UTP, T568A/B CAT6 IP5 MINI-COM

  • Mfr # CJ688TGOR

  • Zoro # G0524642

product price: $19.15
/ea

Key Features

Color
Orange
Number of Ports
1
Connector Type
Jack Module - Standard
Overall Length (In.)
1.5
Maximum Storage Temperature (°C)
75
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ688TGOR
Zoro #
G0524642
UPC #
74983395514
Country of Origin
Unknown

Dimensions

Overall Length (In.)
1.5
Overall Height (In.)
0.71
Overall Width (In.)
0.62
Overall Depth (In.)
1.5

Details

Color
Orange
Number of Ports
1
Connector Type
Jack Module - Standard
Maximum Storage Temperature (°C)
75
Minimum Storage Temperature (°C)
-40
Resistance Properties
Heat-Resistant
Minimum Operating Temperature (°C)
-10
Shield Type
Unshielded (UTP)
Standards Met
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Contact Material
Plated Phosphor Bronze
Module Type
Mini-Com®
Product Type
Network Connector
Performance Level
Category 6
Termination Style
TG Style
Maximum Operating Temperature (°C)
75
Body Material
Polycarbonate
Wiring Scheme
T568A/T568B
Connector Details
1 x RJ-45 Network Female
Product Color
Orange
Certifications & Standards
T568A/T568B, ANSI/TIA/EIA-568-C.2, ISO 11801, IEEE 802.3at
Product Name
Mini-Com Cat.6 UTP Module
Product Line
Mini-Com
Family
GIGA-CHANNEL
Sub Family
MINI-COM TX-6 JACK
Wiring
A/B Universal
Termination
Idc
