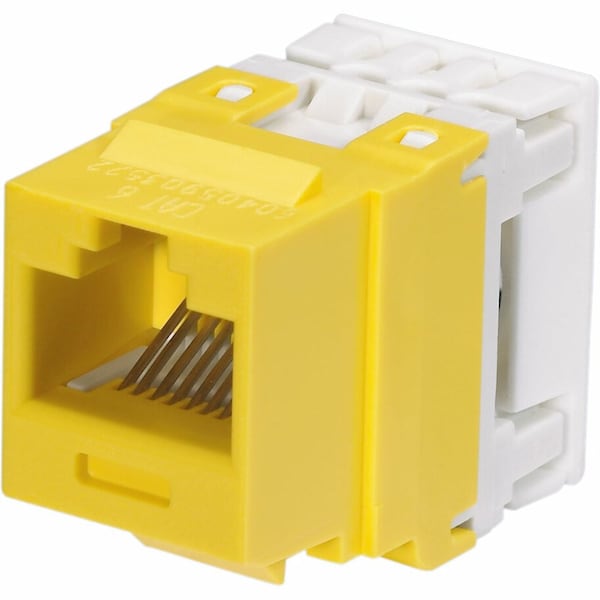

Panduit Nk, Cat6, Punchdownjackmodule, Yellow NK688MYL - main

Nk, Cat6, Punchdownjackmodule, Yellow

  • Mfr # NK688MYL

  • Zoro # G0417311

product price: $7.59
/ea

Key Features

Color
Yellow
Width
0.65 in
Connector Type
Jack Module - Standard
Overall Length
1.16 in
Features
PoE+
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK688MYL
Zoro #
G0417311
UPC #
7498357467
Country of Origin
United States

Dimensions

Width
0.65 in
Overall Length
1.16 in
Overall Height (In.)
0.9
Overall Length (In.)
1.16
Overall Width (In.)
0.65
Overall Depth (In.)
1.16

Details

Item
Nk,Cat6,Punchdownjackmodule,Yellow
Color
Yellow
Connector Type
Jack Module - Standard
Features
PoE+
Note
Punchdown style termination
Maximum Operating Temperature (°C)
75
Product Type
Network Connector
Shield Type
Unshielded (UTP)
Minimum Storage Temperature (°C)
-40
Wiring Scheme
T568A/T568B
Maximum Storage Temperature (°C)
75
Module Type
Keystone
Body Material
Polycarbonate
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Operating Temperature (°C)
-10
Contact Material
Plated Phosphor Bronze
Termination Style
Punchdown
Performance Level
Category 6
Material Details
Polycarbonate - Wire Cap
Connector Details
1 x RJ-45 Network Female
Product Name
Network Connector
Product Material
Acrylonitrile Butadiene Styrene (ABS), Polycarbonate
Product Color
Yellow
Max Operating Temperature
65 degrees celsius
Min Operating Temperature
-10 degrees celsius
Product Class
Jack Modules

Description

Nk,Cat6,Punchdownjackmodule,Yellow
