  5. 1-PORT MOD JACK IDC 8W8P UTPT568A/B CAT6 IP5 MINI-COM, PK 24

This item is Discontinued.

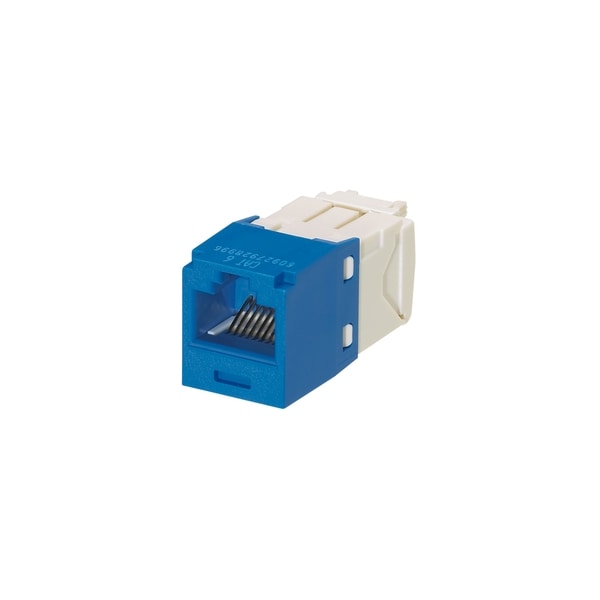

Panduit 1-PORT MOD JACK IDC 8W8P UTPT568A/B CAT6 IP5 MINI-COM, PK 24 CJ688TGBU-24

1-PORT MOD JACK IDC 8W8P UTPT568A/B CAT6 IP5 MINI-COM, PK 24 (Discontinued)

  • Mfr # CJ688TGBU-24
  • Zoro # G0516985
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CJ688TGBU-24
Zoro #
G0516985
UPC #
74983010776
Country of Origin
Unknown

Dimensions

Overall Depth (In.)
1.5
Overall Height (In.)
0.71
Overall Width (In.)
0.62
Overall Length (In.)
1.5
Overall Width (mm)
15.7
Overall Height (mm)
18
Overall Depth (mm)
38.1
Overall Length (mm)
38.1

Details

Color
Blue
Connector Type
Jack Module - Standard
Number of Ports
1
Maximum Operating Temperature (°C)
75
Minimum Operating Temperature (°C)
-10
Module Type
Mini-Com®
Standards Met
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Product Type
Network Connector
Resistance Properties
Heat-Resistant
Performance Level
Category 6
Maximum Storage Temperature (°C)
75
Shield Type
Unshielded (UTP)
Termination Style
TG Style
Wiring Scheme
T568A/T568B
Body Material
Polycarbonate
Contact Material
Plated Phosphor Bronze
Minimum Storage Temperature (°C)
-40
Minimum Storage Temperature (°F)
-40
Minimum Operating Temperature (°F)
14
Maximum Operating Temperature (°F)
167
Sub Brand
Pan-Net®
Maximum Storage Temperature (°F)
167
Connector Details
1 x RJ-45 Network Female
Certifications & Standards
EIA/TIA-568
Product Color
Blue
Product Name
Mini-Com TX6 Plus Modular Insert
Product Line
Mini-Com
Family
GIGA-CHANNEL
Termination
Idc
Sub Family
MINI-COM TX-6 JACK
Wiring
A/B Universal

Restrictions

This item has been restricted from sale in the following states: CA
