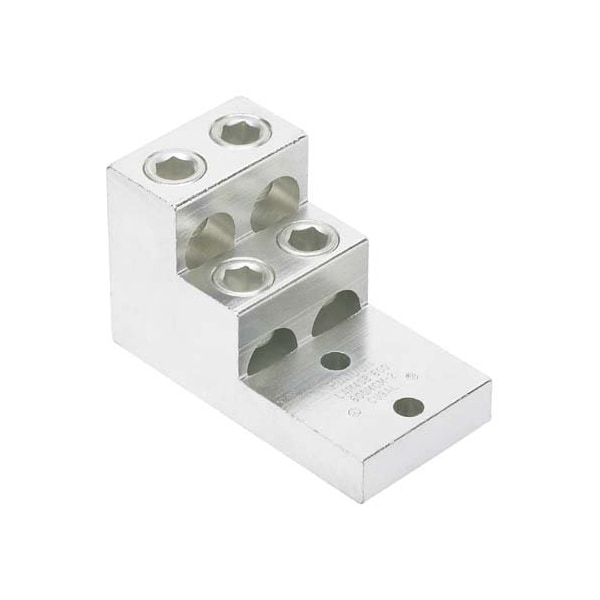

Panduit Aluminum Mechanical Lug, 2 Hole, 4 Barre LAM4SB750-38-1Y - main

Aluminum Mechanical Lug, 2 Hole, 4 Barre

  • Mfr # LAM4SB750-38-1Y

  • Zoro # G2781864

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

For Conductor Material
Aluminum, Copper
For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
750 kcmil
Number of Holes
2
Tongue Width
2.84 inches
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LAM4SB750-38-1Y
Zoro #
G2781864
UPC #
7498359505
Country of Origin
United States

Dimensions

For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
750 kcmil
Tongue Width
2.84 inches
Height
3 in
Overall Length
4.91 in
Hex Size (mm)
9.5
Overall Length (In.)
4.91
Stud Hole Size (In.)
44993
Overall Length (mm)
124.7
Overall Height (mm)
76.2
Tongue Thickness (In.)
0.75
Overall Height (In.)
3
Tongue Thickness (mm)
19.1
Tongue Length
2.34 in

Details

Item
Mechanical Lug
For Conductor Material
Aluminum, Copper
Number of Holes
2
Body Material
Aluminum
Contact Finish
Tin
Maximum Voltage
600 V
Maximum Operating Temperature
90 Degrees C
Standards
UL Listed and CSA Certified
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
35.1
Stud Hole Spacing (In.)
1.38
Product Type
Mechanical Connectors - Lug
Tongue Type
Straight Tongue
Product Name
Terminal Connector
Connector Plating
Tin
Product Material
Aluminum, Copper
Product Class
Wire Termination
