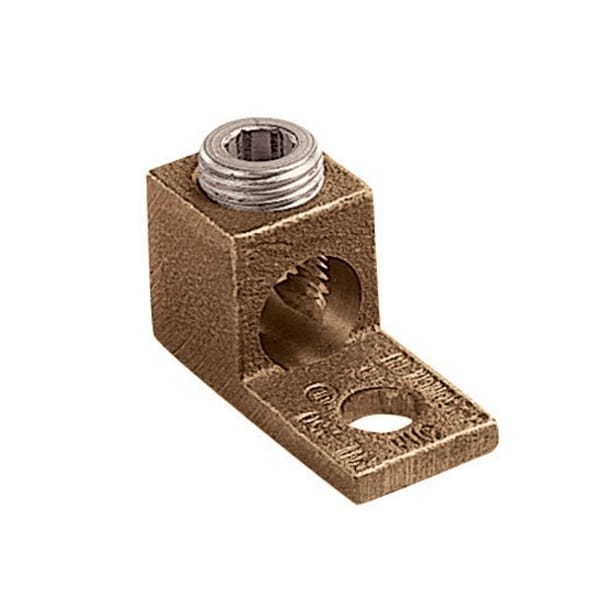

Panduit Mechanical Lug, 500 kcmil Max, 1 Hole, 1/2 in Stud, Copper PNL-500-3 - main

Mechanical Lug, 500 kcmil Max, 1 Hole, 1/2 in Stud, Copper

  • Mfr # PNL-500-3

  • Zoro # G0421100

product price:  $51.79
/ea

Key Features

For Conductor Material
Copper
For Minimum Wire Size
4 AWG
For Maximum Wire Size
500 kcmil
Number of Holes
1
For Stud Size
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PNL-500-3
Zoro #
G0421100
UPC #
7498363255
Country of Origin
India

Dimensions

For Minimum Wire Size
4 AWG
For Maximum Wire Size
500 kcmil
For Stud Size
1/2 in
Tongue Width
1.38 inches
Width
0.8"
Height
1.47 in
Overall Length
3 in
Overall Length (In.)
3
Stud Hole Size (In.)
1 to 2
Overall Length (mm)
76.2
Overall Height (In.)
1.47
Overall Height (mm)
37.3
Tongue Thickness (In.)
0.25
Tongue Length
1.63 in

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Holes
1
Body Material
Copper
Contact Finish
Bare
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
UL listed and CSA certified
Features
Corrosion Resistant
UL Temperature Rating (°C)
90
Tongue Type
Straight Tongue
Product Type
Mechanical Connectors - Lug
Product Name
Terminal Connector
Product Material
Copper
Product Class
Mechanical Lugs

Description

Mech Lug,Cu,#4 Sol-500 Kcmil,1/2 Stud
