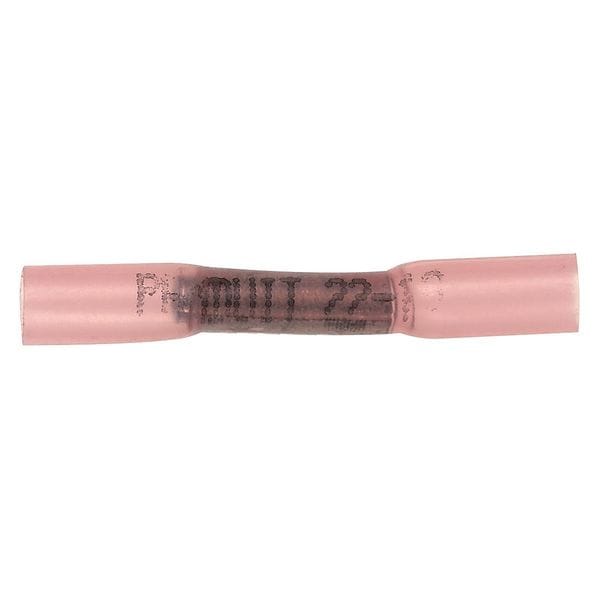

Butt Splice Wire Connector, 18 AWG Max, Red, Polyolefin Insulation, 600 V, 25 PK
Mfr # BSH18-Q
Zoro # G0159321
product price: $54.29
/pk 25, $2.17/eaKey Features
Type
Butt Splice
Color
Red
Minimum Wire Size
22 AWG
Insulation Material
Polyolefin
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BSH18-Q
Zoro #
G0159321
UPC #
074983818235
Country of Origin
United States
Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Barrel Inside Dia.
0.17 in
Overall Length
1.45 in
Strip Length
5/16 in
For Maximum Wire Insulation Diameter
0.17 in
Barrel Inside Diameter
0.17 in
Wire Strip Length (In.)
5/16
Wire Strip Length (mm)
7.9
Maximum Metric Conductor Size (mm²)
1
For Minimum Wire Size - Solid
22 AWG
For Minimum Wire Size - Stranded
22 AWG
Description
Butt Splice Connector, Connection Type Crimp, Insulation Material Heat Shrink, Insulation Color Red, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 1.45 in, Seam Style Brazed, Barrel Inside Diameter 0.17 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number CT-310
