  9. Cat 5E Leadframe Jack Module - Black

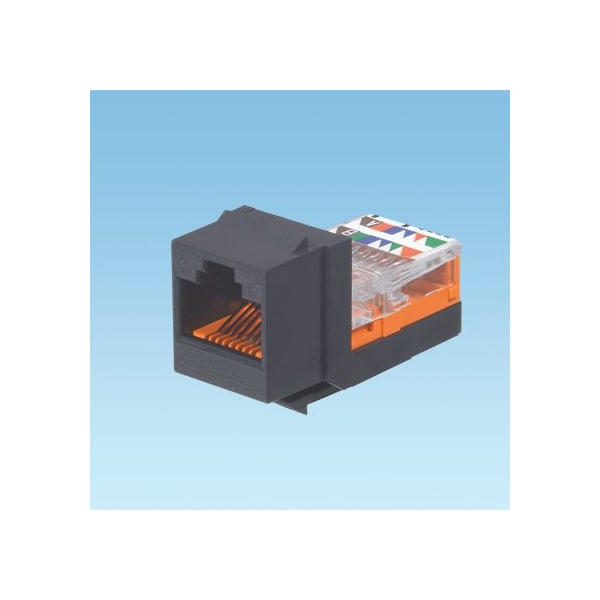

Panduit Cat 5E Leadframe Jack Module - Black NK5E88MBLY - main

Cat 5E Leadframe Jack Module - Black

  • Mfr # NK5E88MBLY

  • Zoro # G604858479

product price: $7.55
/ea
Sold in multiples of 2 for $15.10

Key Features

Color
Black
Depth
1.37 in
Width
0.65 in
Connector Type
Jack Module
Type
Jack Module
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK5E88MBLY
Zoro #
G604858479
UPC #
7498305497
Country of Origin
China

Dimensions

Depth
1.37 in
Width
0.65 in
Height
0.87 in
Overall Width
0.65
Overall Length
1.37 in
Overall Height
0.87
Overall Width (In.)
0.65
Overall Depth (In.)
1.37
Overall Length (In.)
1.37
Overall Height (In.)
0.87

Details

Color
Black
Connector Type
Jack Module
Type
Jack Module
Termination Type
Leadframe
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Product Type
Jack Module
Termination Style
Leadframe
Minimum Operating Temperature (°C)
-10
Performance Level
Category 5e
Maximum Storage Temperature (°C)
70
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Contact Material
Plated Phosphor Bronze
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Body Material
ABS/Polycarbonate
Maximum Operating Temperature (°C)
65
Shield Type
Unshielded (UTP)
Note
Leadframe style jack
Module Type
Keystone
Product Class
Jack Modules
Min Operating Temperature
-10 degrees celsius
Max Operating Temperature
65 degrees celsius

Description

The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is black.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
