  9. Cat 5E Punchdown Jack Module - Intern (10 Pack), 10PK
Shop All Voice & Data Jacks
Panduit

Cat 5E Punchdown Jack Module - Intern (10 Pack), 10PK

product price: $54.85
/pk 10, $5.49/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Gray
  • Depth 1.16 in
  • Width 0.65 in
  • Connector Type Jack Module
  • Termination Type Punchdown
See all product information

Product Information

Dimensions

Depth 1.16 in
Width 0.65 in
Height 0.9 in
Overall Height 0.9
Overall Length 1.16 in
Overall Width 0.65
Overall Length (In.) 1.16
Overall Height (In.) 0.9
Overall Width (In.) 0.65
Overall Depth (In.) 1.16

Details

Color Gray
Connector Type Jack Module
Termination Type Punchdown
Type Jack Module
Standards Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Contact Material Plated Phosphor Bronze
Shield Type Unshielded (UTP)
Maximum Operating Temperature (°C) 75
Performance Level Category 5e
Maximum Storage Temperature (°C) 75
Minimum Storage Temperature (°C) -40
Termination Style Punchdown
Wiring Scheme T568A/T568B
Product Type Jack Module
Body Material Polycarbonate
Minimum Operating Temperature (°C) -10
Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Module Type Keystone
Note Punchdown style termination
Max Operating Temperature 65 degrees celsius
Min Operating Temperature -10 degrees celsius
Product Class Copper Systems
Product Color International Gray

Description

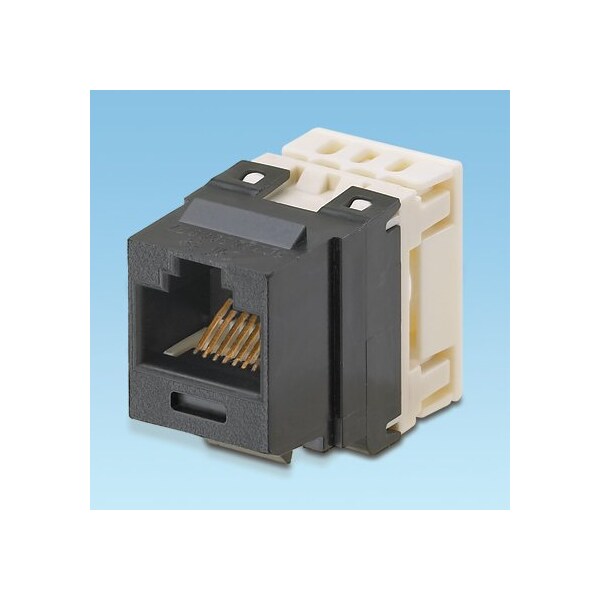

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international gray.
