  9. Cat 6 Utp Jack Module, Tp Style, Red (10 Pack), 10PK
Panduit Cat 6 Utp Jack Module, Tp Style, Red (10 Pack), 10PK NK6TMRD - main

Cat 6 Utp Jack Module, Tp Style, Red (10 Pack), 10PK

  • Mfr # NK6TMRD

  • Zoro # G904858858

product price: $106.99
/pk 10, $10.70/ea
Free Shipping & Returns

Key Features

Color
Red
Depth
1.43 in
Termination Type
TP Style
Width
0.58 in
Type
Jack Module
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6TMRD
Zoro #
G904858858
UPC #
7498343820
Country of Origin
United States

Dimensions

Depth
1.43 in
Width
0.58 in
Height
0.76 in
Overall Height
0.76
Overall Length
1.43 in
Overall Width
0.58
Overall Depth (In.)
1.43
Overall Height (In.)
0.76
Overall Width (In.)
0.58
Overall Length (In.)
1.43

Details

Color
Red
Termination Type
TP Style
Type
Jack Module
Connector Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Maximum Storage Temperature (°C)
70
Product Type
Jack Module
Performance Level
Category 6
Minimum Operating Temperature (°C)
-10
Contact Material
Plated Phosphor Bronze
Body Material
ABS/Polycarbonate
Note
TP style termination
Termination Style
TP Style
Shield Type
Unshielded (UTP)
Minimum Storage Temperature (°C)
-40
Wiring Scheme
T568A/T568B
Maximum Operating Temperature (°C)
65
Module Type
Keystone
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Product Class
Copper Systems
Min Operating Temperature
-10 degrees celsius
Max Operating Temperature
65 degrees celsius

Description

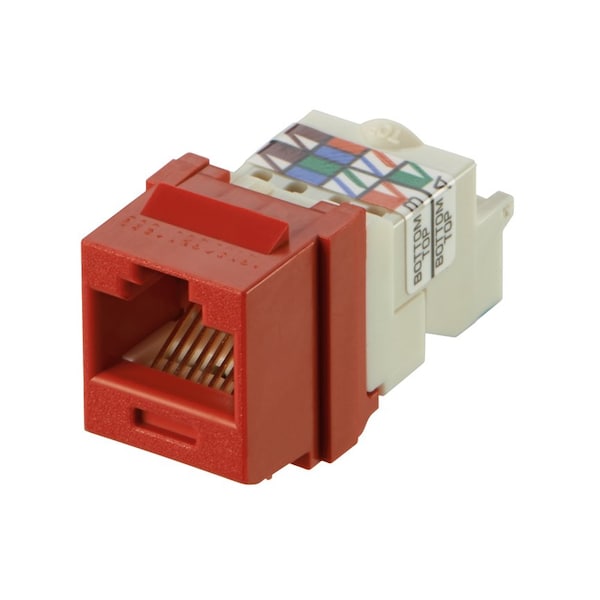

The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is red.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
