  9. Cat 5E Punchdown Jack Module - Violet (10 Pack), 10PK

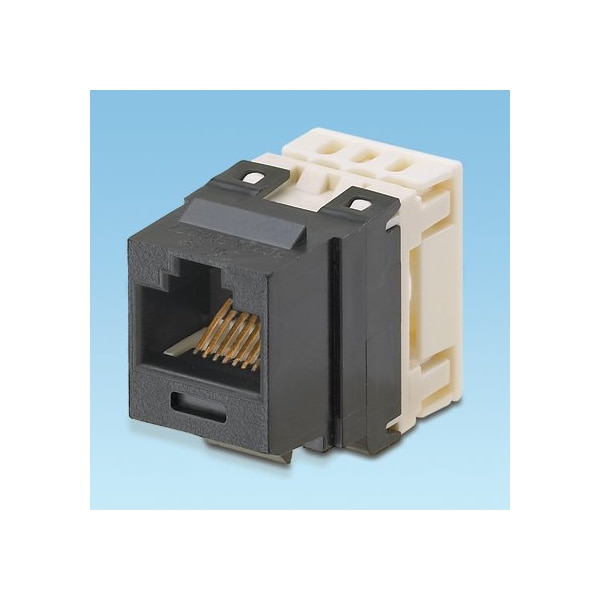

Panduit Cat 5E Punchdown Jack Module - Violet (10 Pack), 10PK NKP5E88MVL - main

Cat 5E Punchdown Jack Module - Violet (10 Pack), 10PK

  • Mfr # NKP5E88MVL

  • Zoro # G604858721

product price: $73.69
/pk 10, $7.37/ea

Key Features

Color
Violet
Termination Type
Punchdown
Height
0.9 in
Width
0.65 in
Connector Type
Jack Module
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NKP5E88MVL
Zoro #
G604858721
UPC #
7498310698
Country of Origin
Costa Rica

Dimensions

Height
0.9 in
Width
0.65 in
Depth
1.16 in
Overall Height
0.9
Overall Length
1.16 in
Overall Width
0.65
Overall Height (In.)
0.9
Overall Width (In.)
0.65
Overall Length (In.)
1.16
Overall Depth (In.)
1.16

Details

Color
Violet
Termination Type
Punchdown
Connector Type
Jack Module
Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Module Type
Keystone
Minimum Operating Temperature (°C)
-10
Maximum Operating Temperature (°C)
75
Shield Type
Unshielded (UTP)
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Performance Level
Category 5e
Product Type
Jack Module
Note
Punchdown style termination
Minimum Storage Temperature (°C)
-40
Termination Style
Punchdown
Contact Material
Plated Phosphor Bronze
Maximum Storage Temperature (°C)
75
Wiring Scheme
T568A/T568B
Body Material
Polycarbonate
Min Operating Temperature
-10 degrees celsius
Product Class
Copper Systems
Max Operating Temperature
65 degrees celsius

Description

The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is violet.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
