  9. Cat 6 Utp Jack Module, Tp Style, Inte (10 Pack), 10PK

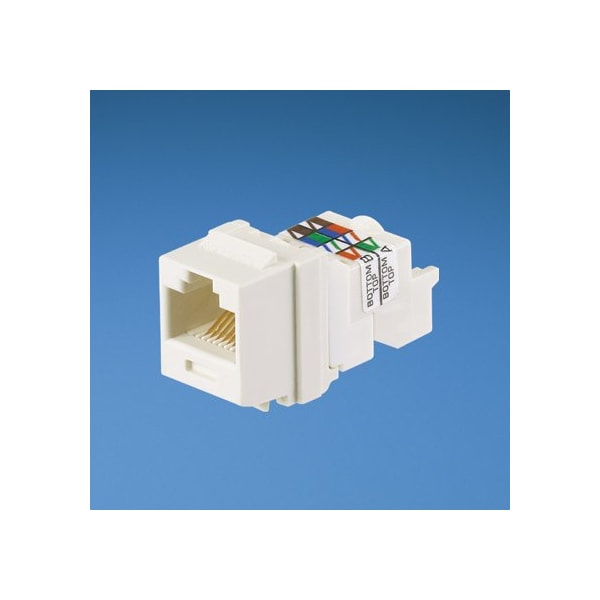

Panduit Cat 6 Utp Jack Module, Tp Style, Inte (10 Pack), 10PK NK6TMIG - main

Cat 6 Utp Jack Module, Tp Style, Inte (10 Pack), 10PK

  • Mfr # NK6TMIG

  • Zoro # G604858820

product price: $107.99
/pk 10, $10.80/ea
Free Shipping & Returns

Key Features

Color
Gray
Depth
1.43 in
Height
0.76 in
Type
Jack Module
Termination Type
TP Style
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6TMIG
Zoro #
G604858820
UPC #
7498343814
Country of Origin
United States

Dimensions

Depth
1.43 in
Height
0.76 in
Width
0.58 in
Overall Width
0.58
Overall Length
1.43 in
Overall Height
0.76
Overall Height (In.)
0.76
Overall Length (In.)
1.43
Overall Depth (In.)
1.43
Overall Width (In.)
0.58

Details

Color
Gray
Type
Jack Module
Termination Type
TP Style
Connector Type
Jack Module
Standards
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Shield Type
Unshielded (UTP)
Contact Material
Plated Phosphor Bronze
Product Type
Jack Module
Note
TP style termination
Maximum Operating Temperature (°C)
65
Minimum Storage Temperature (°C)
-40
Module Type
Keystone
Minimum Operating Temperature (°C)
-10
Termination Style
TP Style
Performance Level
Category 6
Wiring Scheme
T568A/T568B
Maximum Storage Temperature (°C)
70
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Body Material
ABS/Polycarbonate
Product Color
International Gray
Min Operating Temperature
-10 degrees celsius
Max Operating Temperature
65 degrees celsius
Product Class
Copper Systems

Description

The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is international gray.
