  9. Cat 6 Utp Jack Module, Tp Style, Whit

This item is Discontinued.

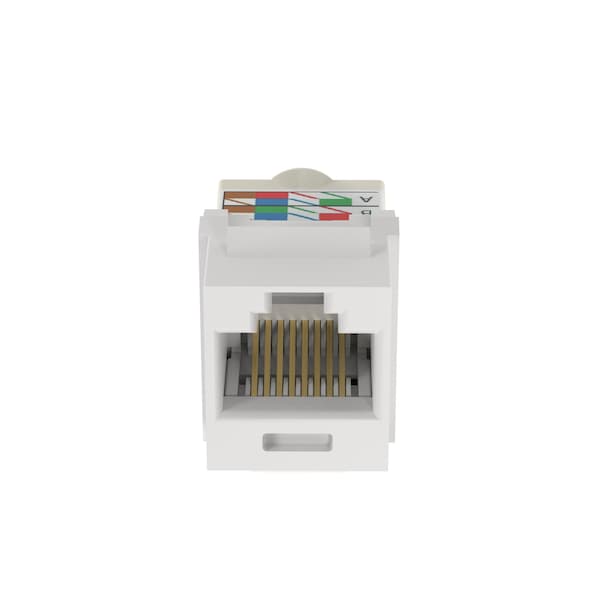

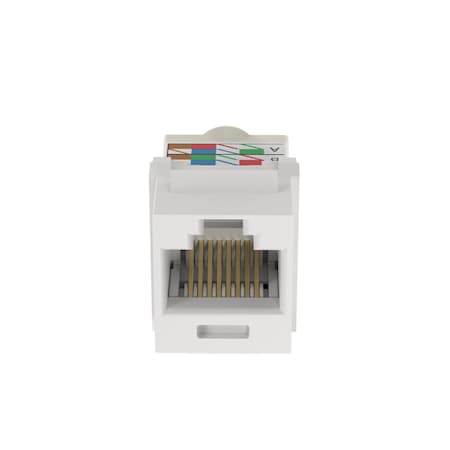

Panduit Cat 6 Utp Jack Module, Tp Style, Whit NK6TMWH

Cat 6 Utp Jack Module, Tp Style, Whit (Discontinued)

  • Mfr # NK6TMWH
  • Zoro # G504858616
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NK6TMWH
Zoro #
G504858616
UPC #
7498343811
Country of Origin
United States

Dimensions

Width
0.58 in
Depth
1.43 in
Height
0.76 in
Overall Height
0.76
Overall Width
0.58
Overall Length
1.43 in
Overall Length (In.)
1.43
Overall Width (In.)
0.58
Overall Height (In.)
0.76
Overall Depth (In.)
1.43

Details

Color
White
Type
Jack Module
Termination Type
TP Style
Connector Type
Jack Module
Standards
Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
Maximum Storage Temperature (°C)
70
Maximum Operating Temperature (°C)
65
Contact Material
Plated Phosphor Bronze
Product Type
Jack Module
Termination Style
TP Style
Wiring Scheme
T568A/T568B
Shield Type
Unshielded (UTP)
Module Type
Keystone
Note
TP style termination
Body Material
ABS/Polycarbonate
Minimum Storage Temperature (°C)
-40
Standards Met
Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
Performance Level
Category 6
Minimum Operating Temperature (°C)
-10
Min Operating Temperature
-10 degrees celsius
Product Class
Jack Modules
Max Operating Temperature
65 degrees celsius

Description

The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is white.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
