Add Tax ExemptionSpecifications
Product Information
MFR #
MEC100-90-PV-C
Zoro #
G804858620
UPC #
61305676669
Country of Origin
United States
Dimensions
Width
0.38 in
Height
0.72
Overall Width
0.38
Maximum Compatible Panel Thickness (mm)
2.5
Overall Width (mm)
9.7
Overall Width (In.)
0.38
Maximum Bundle Diameter (In.)
0.24
Maximum Bundle Diameter (mm)
6.1
Maximum Compatible Panel Thickness (In.)
0.098
Details
Item
Clip
Material
Stainless Steel
For Use With
Conduit
Standards
cULus 1565 (E136577), RoHS Compliant
Color
Silver
Type
Cable Clip
Mounting Type
Clip-On
Application
For routing PV wires along solar panel modules
Product Type
Wire Clip
Note
Clips accommodate one to two 12 gauge or USE-2 PV wires for routing perpendicular to the panel edge
Environment
Indoor/Outdoor
Body Material
Stainless Steel
Mount Method
Edge Clip
Resistance Properties
Weather Resistant
Description

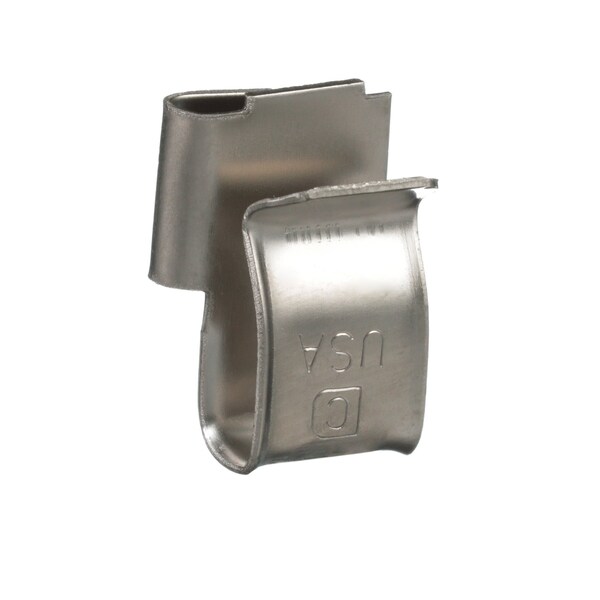

Stainless Steel Metal Edge Clip for Solar Applications. Can be installed on a Panel thickness ranging from 0.051" to 0.098" and can accommodate 1 or 2 wires with a diameter range of 0.161" to 0.240". Use when cable orientation is Perpendicular to the Outer edge of the panel.
