  6. Copper Compression Lug, 1 Hole, 45 Degree Bend/0 Awg

This item is Discontinued.

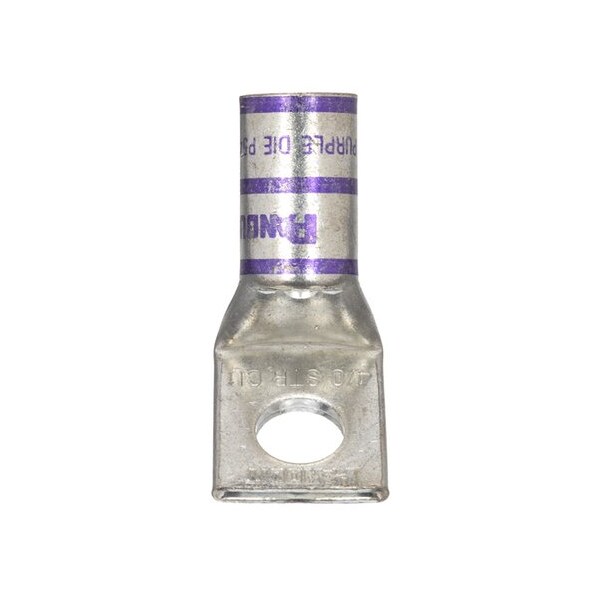

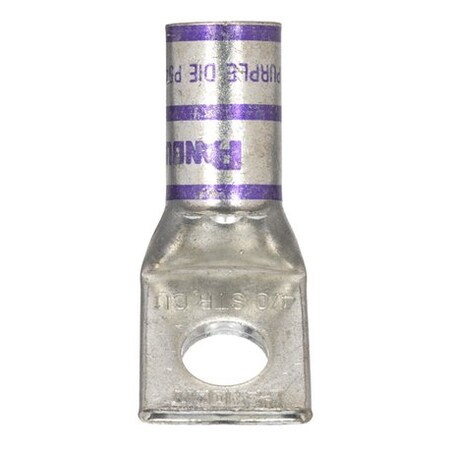

Panduit Copper Compression Lug, 1 Hole, 45 Degree Bend/0 Awg LCA4/0-12H-X

Copper Compression Lug, 1 Hole, 45 Degree Bend/0 Awg (Discontinued)

  • Mfr # LCA4/0-12H-X
  • Zoro # G604859261
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA4/0-12H-X
Zoro #
G604859261
UPC #
7498355864
Country of Origin
Mexico

Dimensions

Tongue Width - Wire Connector
1.06
Overall Length
2.28 in
Barrel Length
1.19
Tongue Thickness (mm)
3.6
Copper Code Conductor Size (AWG)
36617
Overall Length (mm)
57.9
Stud Hole Size (mm)
12.7
Overall Length (In.)
2.28
Tongue Thickness (In.)
0.14
Barrel Length (mm)
30.2
Wire Strip Length (mm)
31.8
Tongue Width (In.)
1.06
Stud Hole Size (In.)
1 to 2
Tongue Width (mm)
26.9
Barrel Length (In.)
1.19
Wire Strip Length (In.)
1.25

Details

Material
Copper
Color Code
Purple
Hole Center to Center
44563
Tool Type
Tin-Plated Copper Compression Connectors - Lugs
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Tongue Style
Standard
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
15
UL Temperature Rating (°C)
90
Panduit Die Index Number
P54
Finish/Coating
Tin-Plated
Tongue Type
Standard
Barrel Type
Standard Barrel Length with Inspection Window
Maximum Voltage (kV)
35
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Base Material
Copper
Tongue Angle
45°
Product Class
Wire Termination

Description

One-hole, standard barrel with window lug, 4/0 AWG wire, 45° angle tongue, 1/2 stud hole.
