  11. Copper Compression Lug, 2 Hole, #2 Awg,

This item is Discontinued.

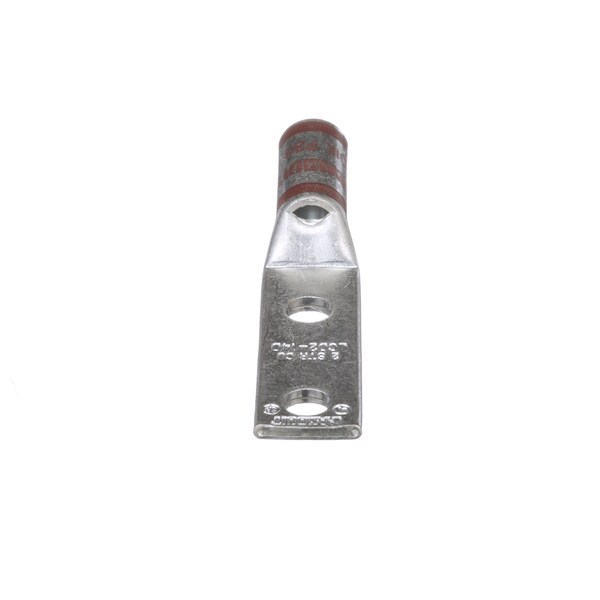

Panduit Copper Compression Lug, 2 Hole, #2 Awg, LCD2-14D-Q

Copper Compression Lug, 2 Hole, #2 Awg, (Discontinued)

  • Mfr # LCD2-14D-Q
  • Zoro # G304859264
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCD2-14D-Q
Zoro #
G304859264
UPC #
7498338300
Country of Origin
Mexico

Dimensions

Tongue Width - Wire Connector
0.6
Overall Length
2.77 in
Barrel Length
0.88
Overall Length (In.)
2.77
Tongue Thickness (In.)
0.1
Barrel Length (mm)
22.4
Stud Hole Size (mm)
6.4
Copper Code Conductor Size (AWG)
2
Stud Hole Size (In.)
44930
Barrel Length (In.)
0.88
Wire Strip Length (mm)
23.8
Tongue Width (In.)
0.6
Overall Length (mm)
70.4
Tongue Width (mm)
15.2
Tongue Thickness (mm)
2.5

Details

Material
Copper
Color Code
Brown
Tool Type
Tin-Plated Copper Compression Connectors - Lugs
Hole Center to Center
44565
Tongue Style
Standard
Base Material
Copper
Maximum Voltage (kV)
35
Burndy Die Index Number
10
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Tongue Type
Standard
Stud Hole Spacing (mm)
25.4
Stud Hole Spacing (In.)
1
Product Type
Copper Compression Connectors - Lugs
Barrel Type
Standard Barrel Length with Inspection Window
Panduit Die Index Number
P33
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

Two-hole, standard barrel lug with window, #2 AWG wire, 1/4 stud hole, 1 hole spacing.
