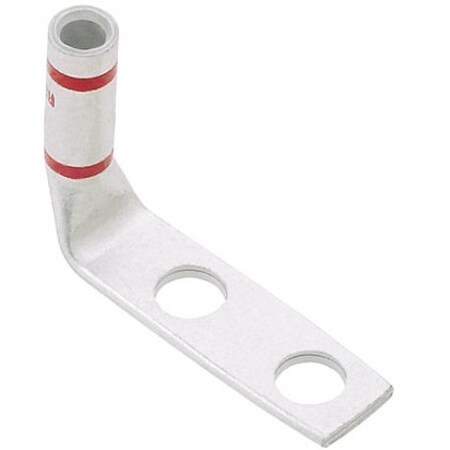

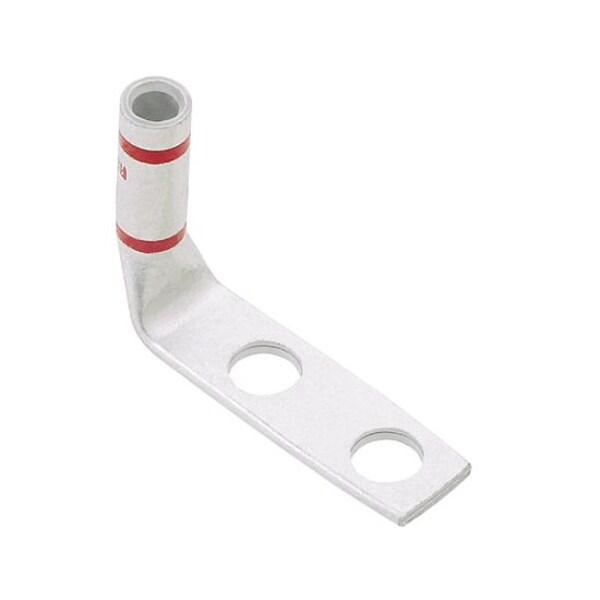

Panduit Copper Compression Lug, 2 Hole, 2/0 Awg LCCX2/0-38DF-X

Copper Compression Lug, 2 Hole, 2/0 Awg (Discontinued)

  • Mfr # LCCX2/0-38DF-X
  • Zoro # G804859887
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCCX2/0-38DF-X
Zoro #
G804859887
UPC #
7498342586
Country of Origin
Mexico

Dimensions

Overall Length
2.73 in
Wire Strip Length (mm)
40
Wire Strip Length (In.)
1.5625
Tongue Width (In.)
0.96
Barrel Length (In.)
1.5
Overall Length (In.)
2.73
Stud Hole Size (In.)
44993
Class M Copper Flex Conductor Size (AWG)
36557
Tongue Thickness (In.)
0.13
Class I Copper Flex Conductor Size (AWG)
36557
Barrel Length (mm)
38.1
Class G Copper Flex Conductor Size (AWG)
36557
Stud Hole Size (mm)
9.5
Class H Copper Flex Conductor Size (AWG)
36557
DLO Copper Flex Conductor Size (AWG)
36557
Tongue Width (mm)
24.4
Class K Copper Flex Conductor Size (AWG)
36557
Overall Length (mm)
69.3
Copper Code Conductor Size (AWG)
36557
Tongue Thickness (mm)
3.3

Details

Material
Copper
Color Code
Black
Hole Center to Center
44628
Standards
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Tool Type
Compression Connectors - Lugs
Panduit Die Index Number
P45
Burndy Die Index Number
13
Stud Hole Spacing (mm)
25.4
Product Type
Compression Connectors - Lugs
Stud Hole Spacing (In.)
1
T & B Die Index Number
45
Finish/Coating
Tin-Plated
Tongue Type
Standard
Tongue Angle
90°
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Standards Met
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Barrel Type
Long Barrel Length with Inspection Window
Base Material
Copper
Product Class
Wire Termination

Description

Two-hole, flex lug, long barrel, 2/0 AWG wire, 3/8 stud hole, 1 hole spacing, 90° angle tongue.
