This item is Discontinued.

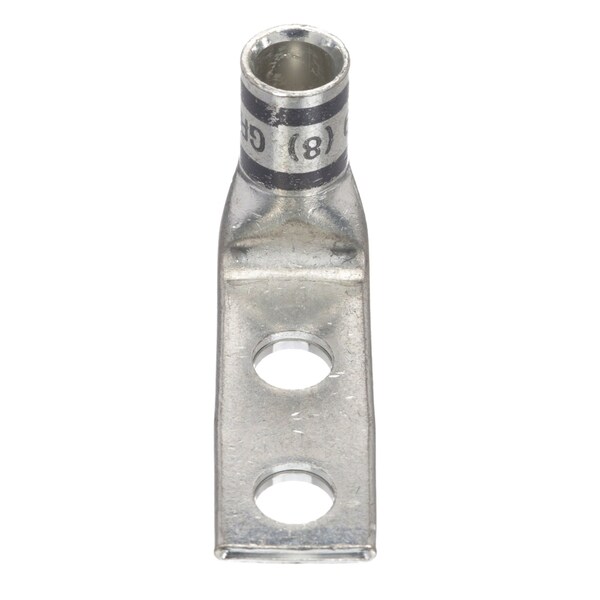

Panduit Copper Compression Lug, 2 Hole, #4 Awg F LCDX4-14AF-L

Copper Compression Lug, 2 Hole, #4 Awg F (Discontinued)

  • Mfr # LCDX4-14AF-L
  • Zoro # G004858505
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCDX4-14AF-L
Zoro #
G004858505
UPC #
7498342672
Country of Origin
Mexico

Dimensions

Overall Length
1.74 in
Class H Copper Flex Conductor Size (AWG)
4
Tongue Thickness (In.)
0.09
Overall Length (mm)
44.2
Barrel Length (In.)
0.53
Tongue Width (mm)
14
Copper Code Conductor Size (AWG)
4
Class G Copper Flex Conductor Size (AWG)
4
Stud Hole Size (mm)
6.4
Barrel Length (mm)
13.5
Wire Strip Length (mm)
16
Stud Hole Size (In.)
44930
Class I Copper Flex Conductor Size (AWG)
4
Class M Copper Flex Conductor Size (AWG)
4
Tongue Width (In.)
0.55
DLO Copper Flex Conductor Size (AWG)
4
Class K Copper Flex Conductor Size (AWG)
4
Tongue Thickness (mm)
2.3
Overall Length (In.)
1.74

Details

Material
Copper
Color Code
Gray
Hole Center to Center
44565
Tool Type
Compression Connectors - Lugs
Maximum Voltage (kV)
35
Product Type
Compression Connectors - Lugs
Panduit Die Index Number
P29
Barrel Type
Standard Barrel Length with Inspection Window
Stud Hole Spacing (mm)
16
Tongue Type
Standard
Finish/Coating
Tin-Plated
Stud Hole Spacing (In.)
0.63
Burndy Die Index Number
8
Base Material
Copper
UL Temperature Rating (°C)
90
Product Class
Wire Termination

Description

Two-hole, flex lug, #4 AWG wire, 1/4 stud hole, .63 hole spacing, 90° angle tongue.
