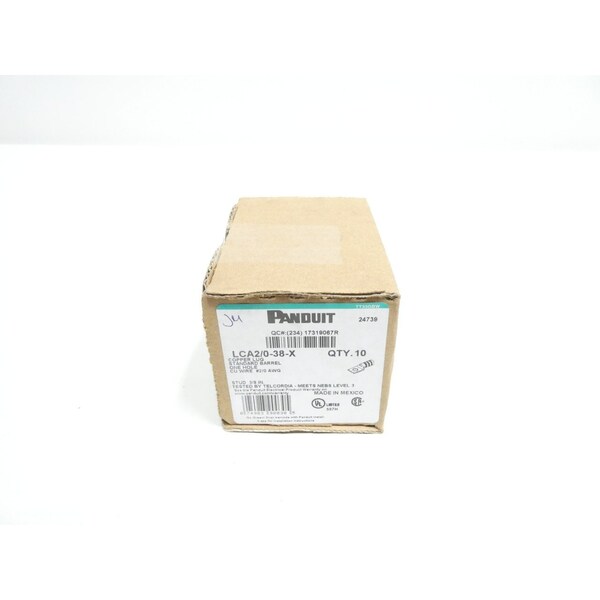

Panduit Copper Lug Standard Barrel One Hole Compression Connector LCA2/0-38-X

Copper Lug Standard Barrel One Hole Compression Connector (Discontinued)

  • Mfr # LCA2/0-38-X
  • Zoro # G909173581
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCA2/0-38-X
Zoro #
G909173581
UPC #
-
Country of Origin
Unknown

Dimensions

Tongue Thickness (In.)
0.13
Copper Code Conductor Size (AWG)
36557
Barrel Length (In.)
0.98
Stud Hole Size (mm)
9.5
Overall Length (In.)
2.15
Inside Diameter (mm)
11.43
Tongue Thickness (mm)
3.3
Barrel Length (mm)
24.9
Tongue Width (mm)
21.6
Wire Strip Length (In.)
42370
Stud Hole Size (In.)
44993
Tongue Width (In.)
0.85
Overall Length (mm)
54.6
Outer Diameter (mm)
14.73
Outer Diameter (In.)
0.58
Inside Diameter (In.)
0.45
Wire Strip Length (mm)
27

Details

Color Code
Black
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
13
UL Temperature Rating (°C)
90
Base Material
Copper
Maximum Voltage (kV)
35
Panduit Die Index Number
P45
T & B Die Index Number
13
Tongue Angle
Straight
Barrel Type
Standard Barrel with Inspection Window
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Tongue Type
Standard
Finish/Coating
Tin-Plated
Lug Type
1 Stud Hole Lug

Description

Copper Lug Standard Barrel One Hole Compression Connector
