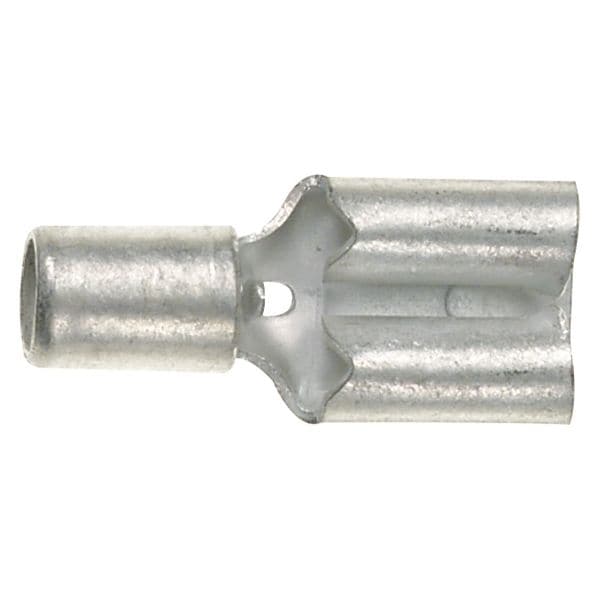

Female Disconnect, Bare, 16-14AWG, PK1000

  • Mfr # D14-250-M

  • Zoro # G0159251

product price:  $212.99
/pk 1000, $0.21/ea
Free Shipping & Returns

Key Features

Insulation
None
Insulation Color
Bare
Wire Range
16 to 14 AWG
Connection Type
Crimp
Insulation Type
Non-Insulated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D14-250-M
Zoro #
G0159251
UPC #
074983822034
Country of Origin
Mexico

Dimensions

Overall Length
0.66 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.085 in
Tab Width
0.25 in
Barrel Size
Standard
Maximum Wire Size
14 AWG
Strip Length
1/4 in
Minimum Wire Size
16 AWG
Tab Thickness
0.032 in
Barrel Inside Diameter
0.085 in
Wire Rope Length
0.66 in

Details

Item
Wire Disconnect
Insulation
None
Insulation Color
Bare
Wire Range
16 to 14 AWG
Connection Type
Crimp
Insulation Type
Non-Insulated
Seam
Sleeved Barrel
Max. Voltage
2,000 V
Max. Temp.
302 Degrees F
Connection Material
Tin-Plated Brass
Standards
CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized
Special Features
Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel, Internally Beveled Barrel, Sleeved Barrel, Vibration Resistant
Maximum Operating Temperature
302 Degrees F
Terminal Type
Socket
Minimum Operating Temperature
-60 Degrees F
Insulation Coverage
None
Contact Finish
Tin
Maximum Voltage
2,000 V
Termination Style
Crimp
Seam Style
Seamless
Insulation Material
None
RoHS Compliant
Yes
Contact Material
Brass
Disconnect Style
Quick Disconnect

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Max. Operating Temp. 302 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 2,000 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized
