Shop PANDUIT

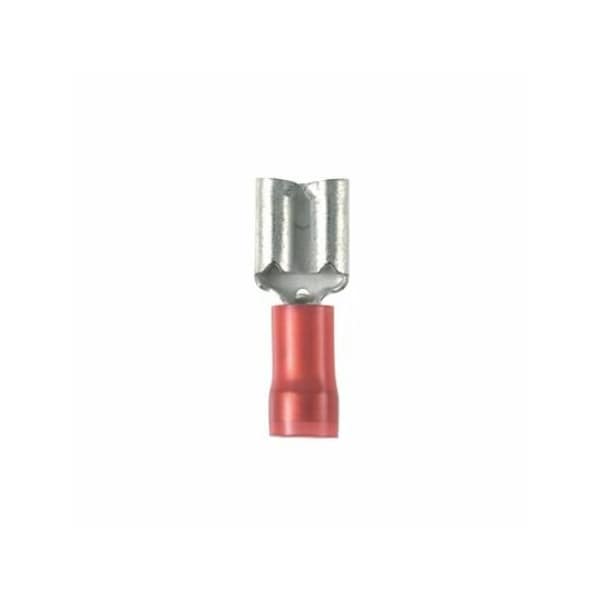

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-111-C
  • Zoro # G0765499
product price:
$
104.99
/pk of 100, $1.05/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.69 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-111-C
Zoro #
G0765499
UPC #
7498382706
Country of Origin
Mexico

Dimensions

Overall Length
0.69 in
Height
0.07 in
Width
0.2"
Overall Width (mm)
3.8
Insulation Diameter (mm)
2.5
Minimum Wire Size (AWG)
#22
Minimum Copper Conductor Size (AWG)
#22
Maximum Copper Conductor Size (AWG)
#18
Wire Strip Length (In.)
11933
Overall Thickness (mm)
2.5
Minimum Metric Conductor Size (mm²)
0.5
Maximum Metric Conductor Size (mm²)
1
Overall Width (In.)
0.15
Insulation Diameter (In.)
0.1
Overall Length (In.)
0.69
Maximum Wire Size (AWG)
#18
Maximum Wire Insulation Diameter (mm)
2.5
Overall Length (mm)
17.5
Wire Strip Length (mm)
7.1
Overall Thickness (In.)
0.1
Tab Size (mm)
2.8 x 0.5
Maximum Wire Insulation Diameter (In.)
0.1
Tab Size (In.)
0.110 x 0.020

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Tongue Angle
Straight
Disconnect Type
Female Disconnect
Barrel Type
Funnel
Finish/Coating
Tin-Plated
Base Material
Brass
Maximum Voltage (kV)
0.3
Maximum Voltage (V)
300
Maximum Operating Temperature (°C)
90
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Product Type
Disconnect
Insulation Material
Nylon
Flammability Rating
UL94-HB
Maximum Operating Temperature (°F)
194
Contact Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Red
Product Class
Disconnects

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
