Shop PANDUIT

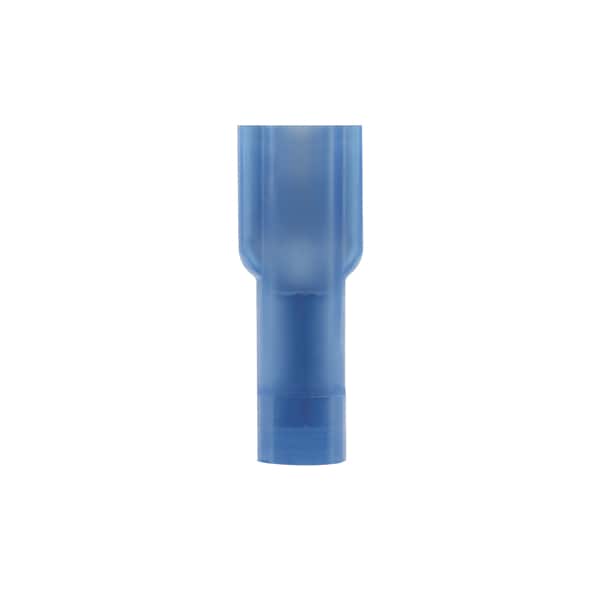

Female Disconnect, double crimp, nylon fully, DNG14-250FB-M, PK 1000

  • Mfr # DNG14-250FB-M

  • Zoro # G2862626

product price:
$
394.99
/pk 1000, $0.39/ea
Free Shipping & Returns

Key Features

For Use With
CT-1015
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.93 in
Width
0.35 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNG14-250FB-M
Zoro #
G2862626
UPC #
7498351437
Country of Origin
Mexico

Dimensions

Overall Length
0.93 in
Width
0.35 in
Height
0.25 in
Wire Strip Length (mm)
7.1
Tab Size (In.)
0.250 x 0.032
Wire Strip Length (In.)
11933
Overall Length (In.)
0.93
Maximum Wire Size (AWG)
#14
Maximum Wire Insulation Diameter (mm)
1.8
Minimum Copper Conductor Size (AWG)
#16
Overall Width (In.)
0.35
Maximum Metric Conductor Size (mm²)
2.5
Minimum Metric Conductor Size (mm²)
1.5
Insulation Diameter (In.)
0.15
Insulation Diameter (mm)
3.9
Tab Size (mm)
6.3 x 0.8
Maximum Copper Conductor Size (AWG)
#14
Maximum Wire Insulation Diameter (In.)
0.7
Minimum Wire Size (AWG)
#16
Overall Length (mm)
23.6
Overall Width (mm)
8.9
Overall Height (mm)
6.4
Overall Height (In.)
0.25

Details

For Use With
CT-1015
Color Code
Blue
Insulation Type
Fully Insulated
Finish
Tinned
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212 ,C22.2 No.153, UL Recognized
Disconnect Type
Female Disconnect-Supra Grip
Finish/Coating
Tin-Plated
Base Material
Brass
Maximum Operating Temperature (°F)
221
Maximum Voltage (kV)
0.6
Insulation Material
Nylon
Flammability Rating
UL94-HB
Maximum Voltage (V)
600
Tongue Angle
Straight
Product Type
Disconnect
Seam Type
Butted
Barrel Type
Funnel
Maximum Operating Temperature (°C)
105
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect, double crimp, nylon fully insulated, 16 - 14 AWG, .250 x .032 tab size
