Shop PANDUIT

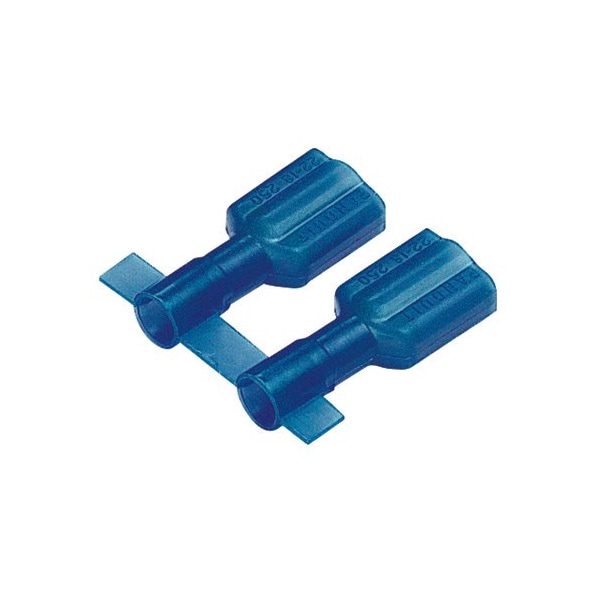

Female Disconnect, Nyln fully Insul, 16-14, DNF14-188FIB-3K, PK 3000

  • Mfr # DNF14-188FIB-3K

  • Zoro # G3036016

product price:
$
829.99
/pk of 3000, $0.28/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant, Molded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF14-188FIB-3K
Zoro #
G3036016
UPC #
7498370979
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Height
0.18 in
Width
0.3"
Insulation Diameter (mm)
4.1
Minimum Wire Size (AWG)
#16
Overall Width (In.)
0.29
Minimum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
2.5
Wire Strip Length (mm)
7.1
Maximum Wire Insulation Diameter (mm)
4.1
Maximum Wire Size (AWG)
#14
Maximum Copper Conductor Size (AWG)
#14
Maximum Wire Insulation Diameter (In.)
0.16
Tab Size (mm)
4.8 x 0.5
Overall Length (In.)
0.78
Overall Length (mm)
19.8
Minimum Copper Conductor Size (AWG)
#16
Tab Size (In.)
0.187 x 0.020
Wire Strip Length (In.)
11933
Insulation Diameter (In.)
0.16
Overall Width (mm)
7.4

Details

For Use With
Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant, Molded
Finish
Tinned
Maximum Voltage (V)
600
Maximum Operating Temperature (°F)
221
Base Material
Brass
Insulation Material
Nylon
Disconnect Type
Female Disconnect
Tongue Angle
Straight
Maximum Operating Temperature (°C)
105
Maximum Voltage (kV)
0.6
Finish/Coating
Tin-Plated
Flammability Rating
UL94-HB
Seam Type
Butted
Product Type
Terminal Connector
Barrel Type
Funnel
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Connector Details
1 x Quick Disconnect
Product Color
Blue
Product Name
Terminal Connector
Contact Plating
Tin
Max Operating Temperature
105 degrees celsius
Product Class
Wire Termination

Description

Female Disconnect, nylon fully insulated, 16 - 14 AWG, .187 x .020 tab size, funnel entry
