Shop PANDUIT

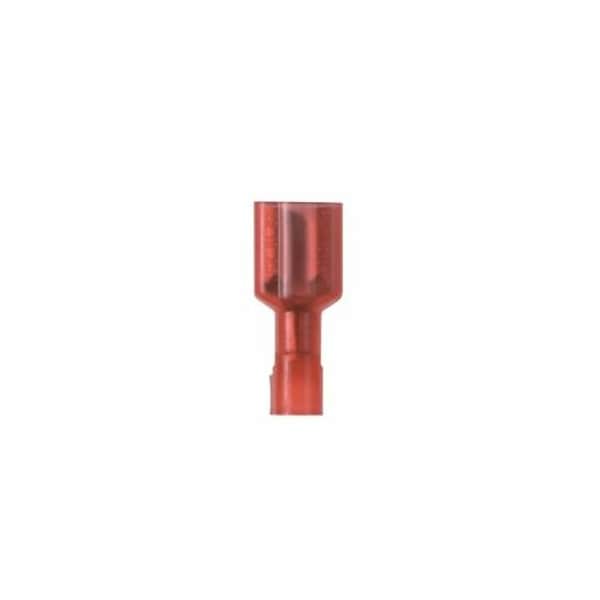

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-187FIB-C
  • Zoro # G0765523

product price:
$
88.59
/pk of 100, $0.89/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNF18-187FIB-C
Zoro #
G0765523
UPC #
7498375978
Country of Origin
Mexico
Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Flammability Rating
UL94-HB
Tongue Angle
Straight
Base Material
Brass
Maximum Operating Temperature (°C)
105
Barrel Type
Funnel
Seam Type
Butted
Insulation Material
Nylon
Product Type
Disconnect
Maximum Voltage (kV)
0.6
Maximum Voltage (V)
600
Maximum Operating Temperature (°F)
221
Finish/Coating
Tin-Plated
Disconnect Type
Female Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Contact Plating
Tin
Product Color
Red
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Dimensions

Overall Length
0.78 in
Height
0.18 in
Width
0.3"
Insulation Diameter (mm)
3.5
Insulation Diameter (In.)
0.14
Minimum Wire Size (AWG)
#22
Tab Size (mm)
4.8 x 0.8
Overall Width (In.)
0.29
Overall Length (mm)
19.8
Wire Strip Length (mm)
7.1
Tab Size (In.)
0.187 x 0.032
Wire Strip Length (In.)
11933
Overall Width (mm)
7.4
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Insulation Diameter (In.)
0.14
Maximum Wire Insulation Diameter (mm)
3.4
Overall Length (In.)
0.78
Maximum Metric Conductor Size (mm²)
1
Maximum Copper Conductor Size (AWG)
#18
Minimum Copper Conductor Size (AWG)
#22
Maximum Wire Size (AWG)
#18

Description

Female Disconnect,Nylon,22-18AWG,PK100, Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
