Shop PANDUIT

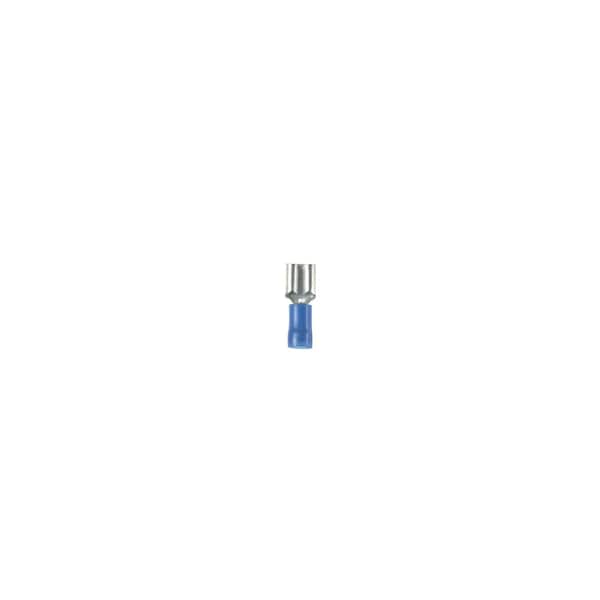

Female Disconnect, Nylon, 16-14AWG, PK100

  • Mfr # DNF14-188-C
  • Zoro # G0765307
product price:
$
104.99
/pk of 100, $1.05/ea
Free Shipping & Returns

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Blue
Insulation Type
Barrel Insulated
Overall Length
0.76 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNF14-188-C
Zoro #
G0765307
UPC #
7498382720
Country of Origin
Mexico
Item
Female Disconnect,Nylon,16-14AWG,PK100
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Blue
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Product Type
Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Flammability Rating
UL94-HB
Disconnect Type
Female Disconnect
Maximum Operating Temperature (°F)
194
Base Material
Brass
Tongue Angle
Straight
Maximum Voltage (V)
300
Finish/Coating
Tin-Plated
Barrel Type
Funnel
Maximum Voltage (kV)
0.3
Maximum Operating Temperature (°C)
90
Insulation Material
Nylon
Product Material
Brass
Contact Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Blue
Max Operating Temperature
90 degrees celsius
Product Class
Disconnects

Dimensions

Overall Length
0.76 in
Width
0.2"
Overall Length (mm)
19.3
Maximum Wire Insulation Diameter (mm)
4.12
Minimum Metric Conductor Size (mm²)
1.5
Overall Width (mm)
5.8
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Insulation Diameter (In.)
0.16
Wire Strip Length (In.)
11933
Maximum Wire Insulation Diameter (In.)
0.162
Maximum Copper Conductor Size (AWG)
#14
Maximum Wire Size (AWG)
#14
Overall Thickness (In.)
0.16
Tab Size (In.)
0.187 x 0.020
Maximum Metric Conductor Size (mm²)
2.5
Overall Thickness (mm)
0.4
Overall Length (In.)
0.76
Tab Size (mm)
4.8 x 0.5
Insulation Diameter (mm)
4.1
Wire Strip Length (mm)
7.1
Overall Width (In.)
0.23

Description

Female Disconnect,Nylon,16-14AWG,Package Quantity 100
