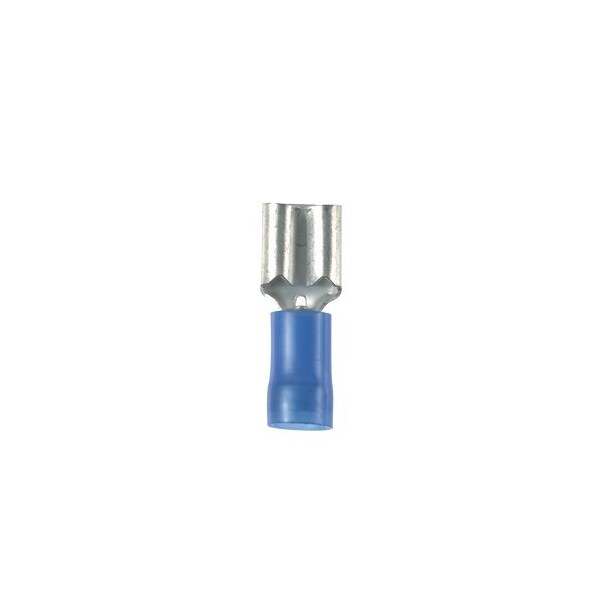

Female Disconnect, nylon barrel insulate

  • Mfr # DNF14-110-M
  • Zoro # G2855897
product price:
$
450.99
/pk of 1000, $0.45/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Barrel Insulated
Overall Length
0.75 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNF14-110-M
Zoro #
G2855897
UPC #
7498382651
Country of Origin
Mexico
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Base Material
Brass
Barrel Type
Funnel
Flammability Rating
UL94-HB
Insulation Material
Nylon
Finish/Coating
Tin-Plated
Disconnect Type
Female Disconnect
Tongue Angle
Straight
Product Type
Disconnect
Maximum Voltage (kV)
0.3
Maximum Voltage (V)
300
Maximum Operating Temperature (°F)
194
Maximum Operating Temperature (°C)
90
Product Color
Blue
Product Name
Terminal Connector
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Class
Wire Termination
Max Operating Temperature
90 degrees celsius

Dimensions

Overall Length
0.75 in
Height
0.08 in
Width
0.2"
Insulation Diameter (In.)
0.16
Wire Strip Length (mm)
7.1
Minimum Wire Size (AWG)
#16
Tab Size (mm)
2.8 x 0.8
Maximum Wire Insulation Diameter (mm)
4.12
Minimum Metric Conductor Size (mm²)
1.5
Overall Thickness (In.)
0.1
Insulation Diameter (mm)
4.1
Overall Length (mm)
19.1
Overall Width (mm)
3.8
Maximum Copper Conductor Size (AWG)
#14
Wire Strip Length (In.)
11933
Overall Width (In.)
0.15
Overall Length (In.)
0.75
Tab Size (In.)
0.110 x 0.032
Maximum Wire Insulation Diameter (In.)
0.162
Maximum Metric Conductor Size (mm²)
2.5
Minimum Copper Conductor Size (AWG)
#16
Overall Thickness (mm)
0.2
Maximum Wire Size (AWG)
#14

Description

Female Disconnect, nylon barrel insulated, 16 - 14 AWG, .110 x .032 tab size, funnel entry
