Shop PANDUIT

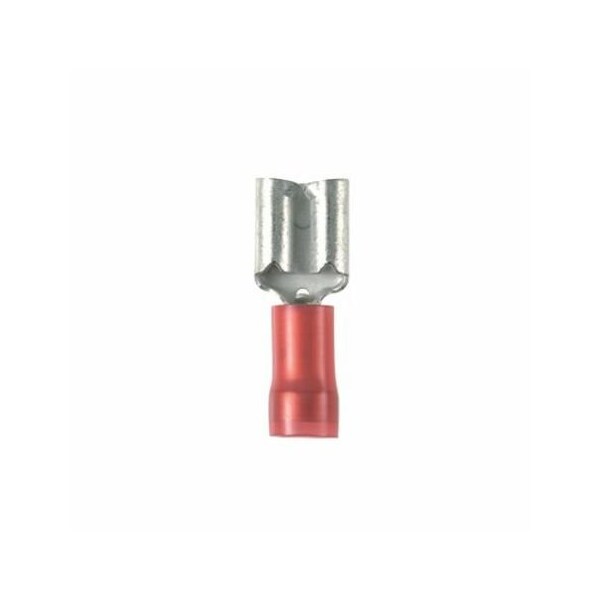

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-187-C

  • Zoro # G0765517

product price:  $90.89
/pk 100, $0.91/ea

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.76 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-187-C
Zoro #
G0765517
UPC #
7498382708
Country of Origin
Mexico

Dimensions

Overall Length
0.76 in
Width
0.2"
Height
0.1 in
Overall Width (In.)
0.23
Overall Length (In.)
0.76
Wire Strip Length (In.)
11933
Tab Size (mm)
4.8 x 0.8
Overall Thickness (In.)
0.16
Minimum Copper Conductor Size (AWG)
#22
Overall Length (mm)
19.3
Overall Thickness (mm)
0.4
Tab Size (In.)
0.187 x 0.032
Insulation Diameter (mm)
3.5
Maximum Wire Size (AWG)
#18
Maximum Copper Conductor Size (AWG)
#18
Overall Width (mm)
5.8
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (mm)
7.1
Insulation Diameter (In.)
0.14
Maximum Wire Insulation Diameter (mm)
3.5
Minimum Wire Size (AWG)
#22
Overall Height (mm)
2.5
Maximum Wire Insulation Diameter (In.)
0.14
Minimum Metric Conductor Size (mm²)
0.5
Overall Height (In.)
0.1

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Disconnect Type
Female Disconnect
Maximum Voltage (kV)
0.3
Base Material
Brass
Product Type
Disconnect
Barrel Type
Funnel
Maximum Operating Temperature (°F)
194
Flammability Rating
UL94-HB
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Tongue Angle
Straight
Finish/Coating
Tin-Plated
Insulation Material
Nylon
Maximum Voltage (V)
300
Maximum Operating Temperature (°C)
90
Product Color
Red
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Name
Terminal Connector
Product Class
Disconnects
Max Operating Temperature
90 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
