Shop PANDUIT

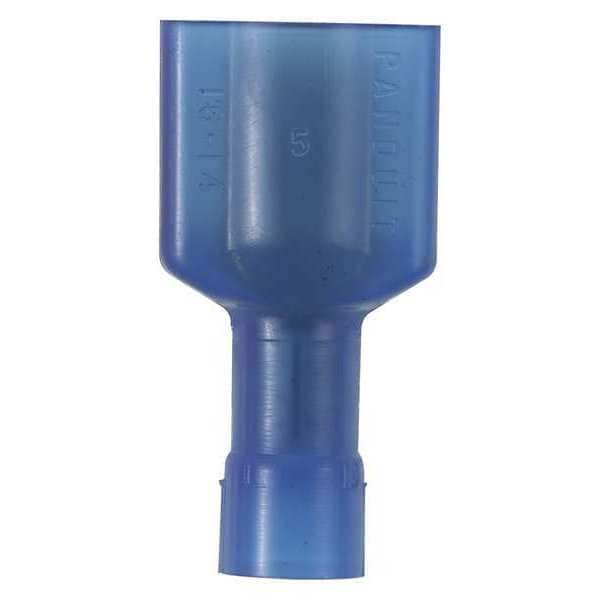

Male Disconnect, Nylon, 16-14AWG, PK25

  • Mfr # DNF14-250FIMB-Q
  • Zoro # G0765447
product price:
$
22.39
/pk of 25, $0.90/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.91 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF14-250FIMB-Q
Zoro #
G0765447
UPC #
007498312035
Country of Origin
Mexico

Dimensions

Overall Length
0.91 in
Height
0.36 in
Width
0.5"
Minimum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
2.5
Wire Strip Length (mm)
7.1
Insulation Diameter (In.)
0.16
Maximum Copper Conductor Size (AWG)
#14
Overall Width (In.)
0.45
Wire Strip Length (In.)
11933
Maximum Wire Insulation Diameter (In.)
0.16
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Insulation Diameter (mm)
4.1
Tab Size (mm)
6.3 x 0.8
Overall Width (mm)
11.4
Tab Size (In.)
0.250 x 0.032
Maximum Wire Insulation Diameter (mm)
4.1
Maximum Wire Size (AWG)
#14
Overall Length (mm)
23.1
Overall Length (In.)
0.91

Details

Item
Male Disconnect,Nylon,16-14AWG,PK25
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish/Coating
Nickel-Plated
Disconnect Type
Male Tab Disconnect
Maximum Operating Temperature (°F)
221
Flammability Rating
UL94-HB
Seam Type
Butted
Tongue Angle
Straight
Base Material
Brass
Insulation Material
Nylon
Note
DNF14-250FIMB-Q replaces DNF14-250FIMB-L
Maximum Voltage (V)
600
Product Type
Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
105
Barrel Type
Standard
Maximum Voltage (kV)
0.6
Product Material
Brass
Contact Plating
Nickel
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Color
Blue
Max Operating Temperature
105 degrees celsius
Product Class
Disconnects

Description

Male Disconnect,Nylon,16-14AWG,PK25, Package Quantity 25

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
