Shop PANDUIT

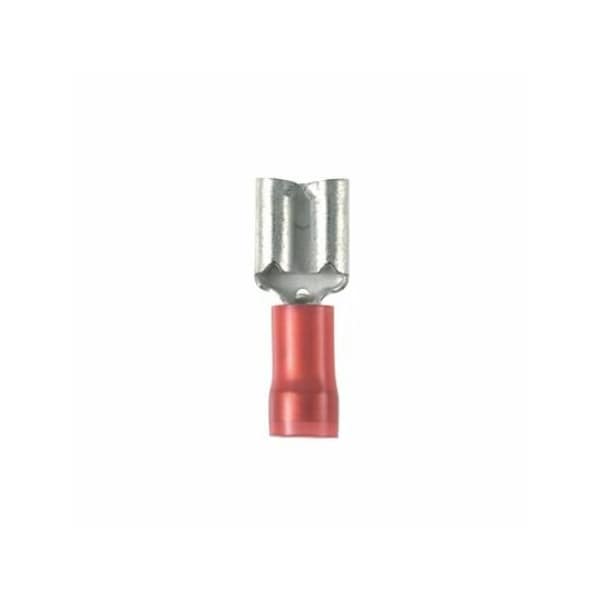

Female Disconnect, Nylon, 22-18AWG, PK1000

  • Mfr # DNF18-111-M

  • Zoro # G0765587

product price:
$
459.99
/pk of 1000, $0.46/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.69 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-111-M
Zoro #
G0765587
UPC #
7498382707
Country of Origin
Mexico

Dimensions

Overall Length
0.69 in
Width
0.2"
Wire Strip Length (mm)
7.1
Overall Height (In.)
0.07
Overall Width (mm)
3.8
Maximum Wire Size (AWG)
#18
Overall Height (mm)
1.8
Minimum Metric Conductor Size (mm²)
0.5
Wire Strip Length (In.)
11933
Maximum Copper Conductor Size (AWG)
#18
Maximum Wire Insulation Diameter (mm)
2.54
Overall Length (mm)
17.5
Tab Size (mm)
2.8 x 0.5
Maximum Metric Conductor Size (mm²)
1
Maximum Wire Insulation Diameter (In.)
0.1
Tab Size (In.)
0.110 x 0.020
Overall Width (In.)
0.15
Minimum Wire Size (AWG)
#22
Overall Length (In.)
0.69

Details

Item
Female Disconnect,Nylon,22-18AWG,PK1000
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Insulation Material
Nylon
Tongue Angle
Straight
Product Type
Disconnect
Maximum Voltage (V)
300
Base Material
Brass
Maximum Voltage (kV)
0.3
Maximum Operating Temperature (°C)
90
Flammability Rating
UL94-HB
Disconnect Type
Female Disconnect
Finish/Coating
Tin-Plated
Standards Met
UL 310, CSA 22.2 No.153
Maximum Operating Temperature (°F)
194
Barrel Type
Funnel
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Color
Red
Contact Plating
Tin
Max Operating Temperature
90 degrees celsius
Product Class
Disconnects

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 1000

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
