Shop PANDUIT

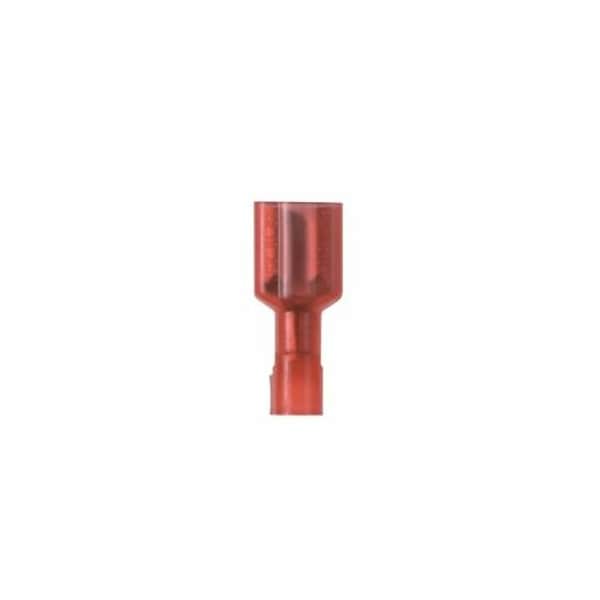

Female Disconnect, Nylon, 22-18AWG, PK50

  • Mfr # DNF18-206FIB-L

  • Zoro # G0765690

product price:  $47.75
/pk 50, $0.96/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-206FIB-L
Zoro #
G0765690
UPC #
7498312220
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Width
0.3"
Height
0.22 in
Maximum Wire Insulation Diameter (mm)
3.6
Overall Length (In.)
0.78
Overall Width (mm)
7.9
Minimum Copper Conductor Size (AWG)
#22
Tab Size (In.)
0.205/0.187 x 0.020
Maximum Copper Conductor Size (AWG)
#18
Wire Strip Length (In.)
11933
Insulation Diameter (mm)
3.5
Tab Size (mm)
5.2/4.8 x 0.5
Maximum Wire Size (AWG)
#18
Maximum Metric Conductor Size (mm²)
1
Insulation Diameter (In.)
0.14
Minimum Wire Size (AWG)
#22
Maximum Wire Insulation Diameter (In.)
0.14
Wire Strip Length (mm)
7.1
Minimum Metric Conductor Size (mm²)
0.5
Overall Length (mm)
19.8
Overall Width (In.)
0.31

Details

Item
Female Disconnect,Nylon,22-18AWG,PK50
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Disconnect Type
Female Disconnect
Maximum Operating Temperature (°F)
221
Maximum Voltage (kV)
0.6
Maximum Voltage (V)
600
Flammability Rating
UL94-HB
Insulation Material
Nylon
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
105
Note
DNF18-206FIB-L replaces DNF18-206FIB-C
Seam Type
Butted
Base Material
Brass
Product Type
Disconnect
Finish/Coating
Tin-Plated
Barrel Type
Funnel
Tongue Angle
Straight
Contact Plating
Tin
Product Color
Red
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Class
Disconnects

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
