This item is Discontinued.

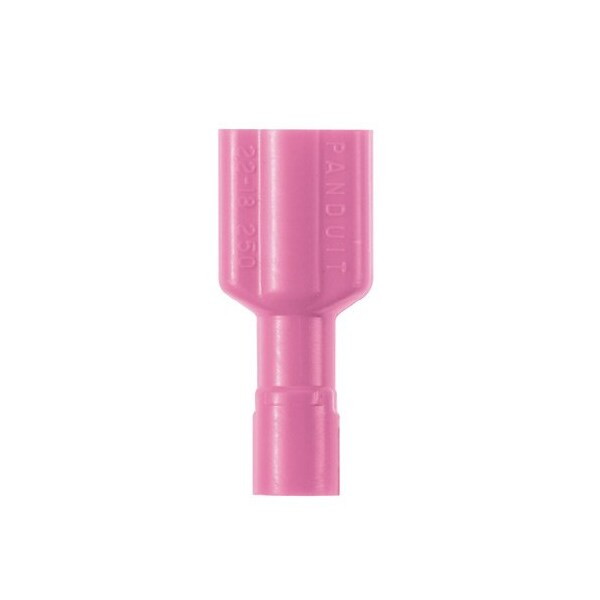

Panduit Female Disconnect, premium nylon fully i DPF18-111FIB-M

Female Disconnect, premium nylon fully i (Discontinued)

  • Mfr # DPF18-111FIB-M
  • Zoro # G2855258
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DPF18-111FIB-M
Zoro #
G2855258
UPC #
7498320390
Country of Origin
Mexico

Dimensions

Length (mm)
18
Length (In.)
0.71
Height (In.)
0.16
Tab Size In. (mm)
0.110 x 0.020 (2.8 x 0.5)
Length In (mm)
0.71 (18)
Width In (mm)
0.19 (4.8)
Max. Insulation Diameter In. (mm)
0.132 (3.4)
Height (mm)
4.1
Tab Size (In.)
0.110 x 0.020
Width (mm)
4.8
Wire Strip Length In. (mm)
9/32" (.2812) (7.1)
Width (In.)
0.19
Tab Size (mm)
2.8 x 0.5

Details

Style
Female Disconnect
Insulation
Premium Nylon - Fully Insulated
Wire Range
22 - 18 AWG
Standards
UL 310 Listed
Barrel Type
Butted Seam
Model (Design)
Sleeve
Flammability Rating
V2
Max. Ins.
0.132
UL Listed
Yes
Wire Range (mm²)
0.5 - 1.0
Base Material
Brass
Tool
CT-600-A, CT-1525, CT-2500
Wire Range In. (mm²)
22 - 18 AWG (0.5 - 1.0)
Plating Type
Tinned
Max. Ins. (mm)
3.4
Max. Voltage Rating
600V
CSA Certified
C22.2 No.153
Panduit Color Code
Red
Type
Fully Insulated
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Barrel Configuration
Funnel Entry

Description

Female Disconnect, premium nylon fully insulated, 22 - 18 AWG, .110 x .020 tab size, funnel entry
