  11. Female Disconnect, right angle, nylon fu

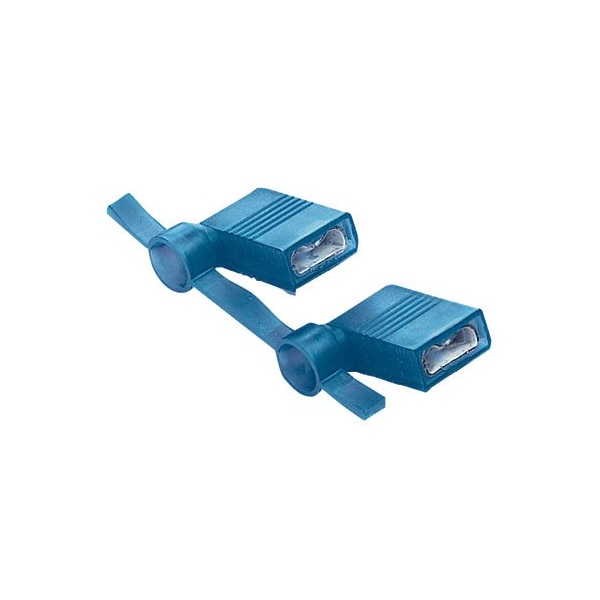

Panduit Female Disconnect, right angle, nylon fu DNFR14205FIB-KD - main

Female Disconnect, right angle, nylon fu

  • Mfr # DNFR14205FIB-KD

  • Zoro # G3036034

product price: $740.99
/pk 1500, $0.49/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.57 in
Features
Molded, Flame Retardant, Right-angled Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNFR14205FIB-KD
Zoro #
G3036034
UPC #
7498378945
Country of Origin
Mexico

Dimensions

Overall Length
0.57 in
Height
0.21 in
Width
0.4"
Minimum Metric Conductor Size (mm²)
1.5
Maximum Copper Conductor Size (AWG)
#14
Overall Depth (In.)
0.6
Maximum Wire Insulation Diameter (In.)
0.18
Overall Length (In.)
0.57
Overall Depth (mm)
15.2
Maximum Wire Insulation Diameter (mm)
4.5
Overall Length (mm)
14.5
Overall Width (In.)
0.6
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Overall Width (mm)
15.2
Insulation Diameter (mm)
4.6
Insulation Diameter (In.)
0.18
Maximum Metric Conductor Size (mm²)
2.5
Maximum Wire Size (AWG)
#14
Wire Strip Length (In.)
11933
Tab Size (mm)
5.2/4.8 x 0.8
Tab Size (In.)
0.205/0.187 x 0.032
Wire Strip Length (mm)
7.1
Depth
0.6 in

Details

For Use With
Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Features
Molded, Flame Retardant, Right-angled Connector
Finish
Tinned
Product Type
Terminal Connector
Insulation Material
Nylon
Maximum Operating Temperature (°C)
105
Base Material
Brass
Maximum Voltage (kV)
0.6
Maximum Operating Temperature (°F)
221
Disconnect Type
Female Disconnect-Right Angle
Barrel Type
Funnel
Maximum Voltage (V)
600
Tongue Angle
Right Angle
Flammability Rating
UL94-HB
Seam Type
Butted
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Finish/Coating
Tin-Plated
Product Material
Brass
Product Color
Blue
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect, right angle, nylon fully insulated, 16 - 14 AWG, .187/.205 x .032 tab size, funnel entry

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
