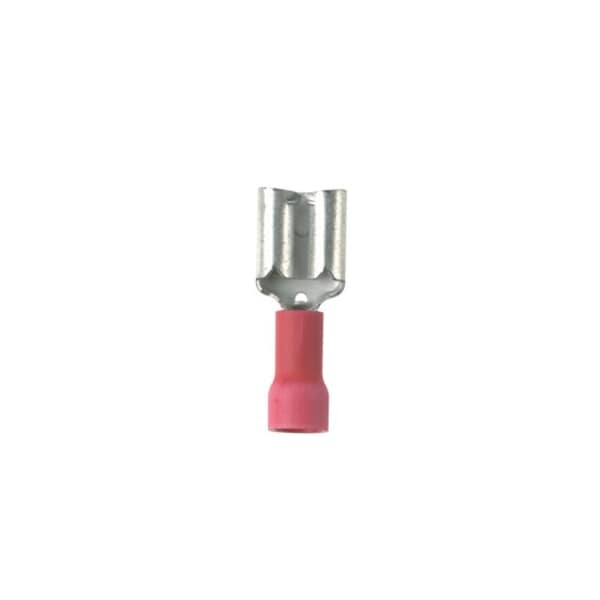

Female Disconnect, Vinyl, 0.81 in., PK1000
Mfr # DV18-250B-MY
Zoro # G0674670
product price: $177.99
/pk 1000, $0.18/ea
Free Shipping & Returns
Key Features
Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Connection Type
Crimp
Insulation Type
Vinyl
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DV18-250B-MY
Zoro #
G0674670
UPC #
7498340920
Country of Origin
Mexico
Dimensions
Tab Size
0.250 in x 0.032 in
Overall Length
0.81 in
Height
0.12 in
Width
0.3"
Overall Length (In.)
0.81
Overall Thickness (mm)
0.4
Insulation Diameter (In.)
0.15
Maximum Wire Insulation Diameter (In.)
0.15
Minimum Metric Conductor Size (mm²)
0.5
Tab Size (mm)
6.3 x 0.8
Maximum Copper Conductor Size (AWG)
#18
Minimum Copper Conductor Size (AWG)
#22
Overall Thickness (In.)
0.16
Overall Length (mm)
20.6
Overall Width (In.)
0.29
Insulation Diameter (mm)
3.8
Minimum Wire Size (AWG)
#22
Wire Strip Length (mm)
7.1
Maximum Metric Conductor Size (mm²)
1
Overall Width (mm)
7.4
Tab Size (In.)
0.250 x 0.032
Maximum Wire Insulation Diameter (mm)
3.8
Maximum Wire Size (AWG)
#18
Wire Strip Length (In.)
11933
Description
Female Disconnect, Insulation Full, Insulation Type Vinyl, Wire Range 22 to 18 AWG, Tab Size 0.250 in x 0.032 in, Max. Temp. 221 Degrees F, Max. Voltage 600 V, Overall Length 0.81 in, Seam Butted, Connection Material Tin Plated Brass, Standards CSA22.2 No. 153, UL 310, Connection Type Crimp, Package Quantity 1000
