  11. Female Disconnect, vinyl barrel insulate

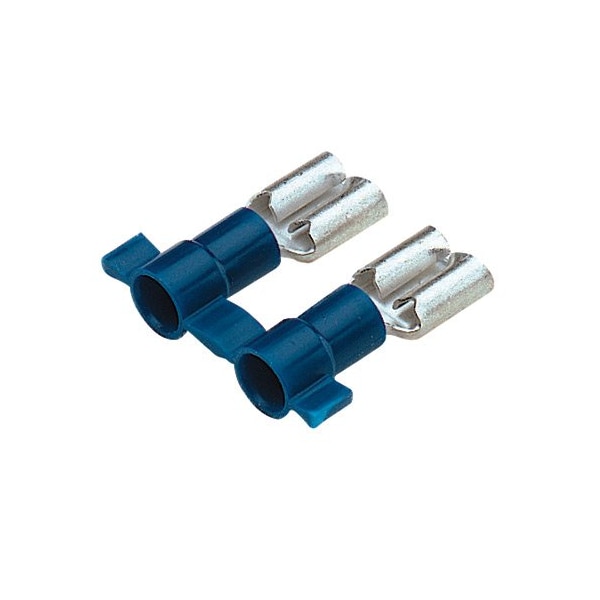

Panduit Female Disconnect, vinyl barrel insulate DV14-206B-3K - main

Female Disconnect, vinyl barrel insulate

  • Mfr # DV14-206B-3K

  • Zoro # G3037924

product price: $727.99
/pk 3000, $0.24/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator
Color Code
Blue
Insulation Type
Barrel Insulated
Overall Length
0.77 in
Features
Flame Retardant, Molded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DV14-206B-3K
Zoro #
G3037924
UPC #
7498382119
Country of Origin
Mexico

Dimensions

Overall Length
0.77 in
Height
0.11 in
Width
0.3"
Maximum Wire Insulation Diameter (In.)
0.76
Maximum Wire Size (AWG)
#14
Overall Width (mm)
6.4
Overall Height (mm)
2.8
Overall Length (mm)
19.6
Maximum Copper Conductor Size (AWG)
#14
Overall Width (In.)
0.25
Minimum Metric Conductor Size (mm²)
1.5
Minimum Wire Size (AWG)
#16
Wire Strip Length (mm)
7.1
Tab Size (mm)
5.2/4.8 x 0.5
Minimum Copper Conductor Size (AWG)
#16
Wire Strip Length (In.)
11933
Insulation Diameter (mm)
4.3
Overall Height (In.)
0.11
Insulation Diameter (In.)
0.17
Maximum Wire Insulation Diameter (mm)
19.3
Overall Length (In.)
0.77
Tab Size (In.)
0.205/0.187 x 0.020
Maximum Metric Conductor Size (mm²)
2.5

Details

For Use With
Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator
Color Code
Blue
Insulation Type
Barrel Insulated
Features
Flame Retardant, Molded
Finish
Tinned
Maximum Operating Temperature (°F)
221
Seam Type
Butted
Barrel Type
Funnel
Insulation Material
Vinyl
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
Maximum Voltage (kV)
0.6
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
105
Flammability Rating
UL94V-0
Tongue Angle
Straight
Base Material
Brass
Product Type
Disconnect
Disconnect Type
Female Disconnect
Product Color
Blue
Contact Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect, vinyl barrel insulated, 16 - 14 AWG, .187/.205 x .020 tab size, butted seam
