Shop 3M

Female Disconnect, Blue, 16-14AWG, PK1000

  • Mfr # MNG14-250DFIK
  • Zoro # G5749852
product price:
$
793.99
/pk of 1000, $0.79/ea
Free Shipping & Returns

Key Features

Insulation
Partial
Material
Plastic
Insulation Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MNG14-250DFIK
Zoro #
G5749852
UPC #
00054007018414
Country of Origin
United States

Dimensions

Overall Length
0.87 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.08 in
Width
0.37 Inch
Diameter
0.23 Inch
Pad Width
0.25 Inch
Thickness
0.032 Inch
Length
0.87 Inch
Maximum Insulation Outer Diameter
0.145 in
Barrel Length
0.25 Inch
Dimension E
0.37 Inch
Conductor Sizes
16 - 14 AWG

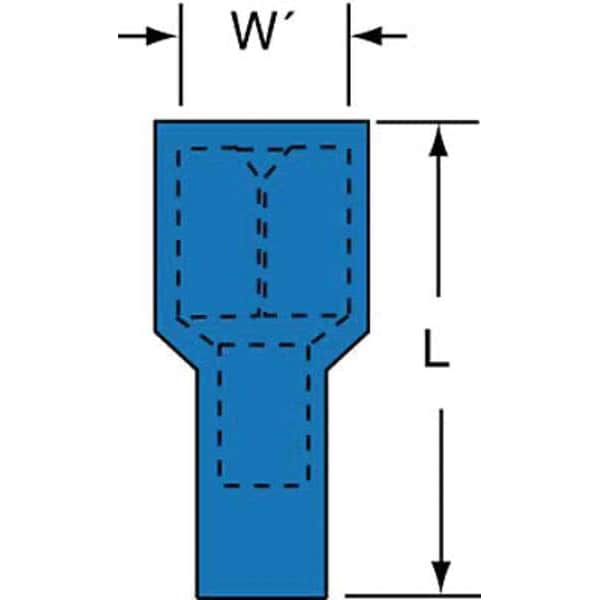

Mates with Male Tab Width (W')
0.25 Inch
Connection Width
0.25 in
Minimum Conductor Size
16 AWG
Barrel Inside Diameter
0.08 in
Overall Diameter
0.23 in
Maximum Insulation Outside Diameter
0.145 in
Tab Width
0.25 in
Maximum Conductor Size
14 AWG
Overall Width
0.37 in

Details

Item
Female Disconnect
Insulation
Partial
Material
Plastic
Insulation Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
Wire Range
16 to 14 AWG
Seam
Butted
Max. Temp.
221 Degrees F
Max. Voltage
600V
Standards
CSA Certified, RoHS Compliant, UL Listed
Connection Material
Tin-Plated Brass
Terminal Type
Disconnect
Agency Approvals
UL and CSA
Terminal Style
Fully Insulated
Barrel Style
Butted
Insulation Material
Nylon with Insulation Grip
Fastener Orientation
Female
Connector / Connector Tool
Connector
Maximum Operating Temperature (Celsius)
105°C
Connector Style
Insulation Displacement

Description

Female Disconnect, Insulation Color Blue, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.87 in, Package Quantity 1000
