Product Information
MFR #
DV18-187B-3K
Zoro #
G3036759
UPC #
7498368608
Country of Origin
Mexico
Dimensions
Overall Length
0.77 in
Height
0.1 in
Width
0.2"
Maximum Wire Insulation Diameter (mm)
3.8
Maximum Copper Conductor Size (AWG)
#18
Overall Height (In.)
0.1
Maximum Wire Insulation Diameter (In.)
0.15
Tab Size (In.)
0.187 x 0.032
Overall Length (mm)
19.6
Wire Strip Length (mm)
7.1
Tab Size (mm)
4.8 x 0.8
Overall Length (In.)
0.77
Minimum Copper Conductor Size (AWG)
#22
Overall Width (In.)
0.23
Wire Strip Length (In.)
11933
Minimum Wire Size (AWG)
#22
Insulation Diameter (In.)
0.15
Maximum Metric Conductor Size (mm²)
1
Overall Width (mm)
5.8
Insulation Diameter (mm)
3.8
Maximum Wire Size (AWG)
#18
Overall Height (mm)
2.5
Minimum Metric Conductor Size (mm²)
0.5
Description

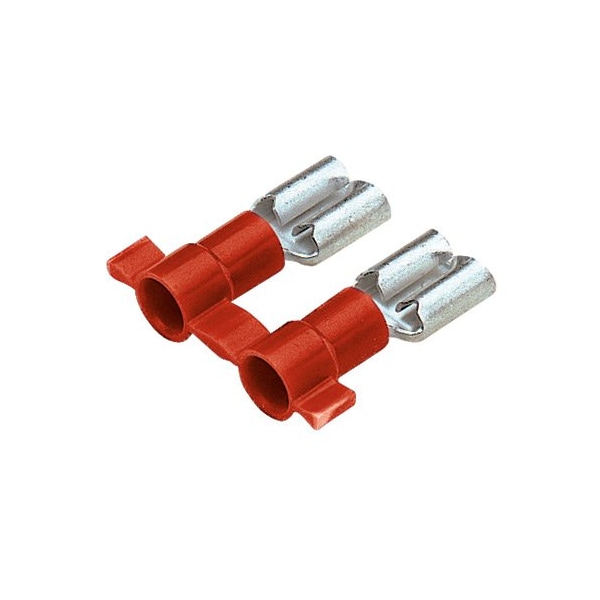

Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .187 x .032 tab size, butted seam
